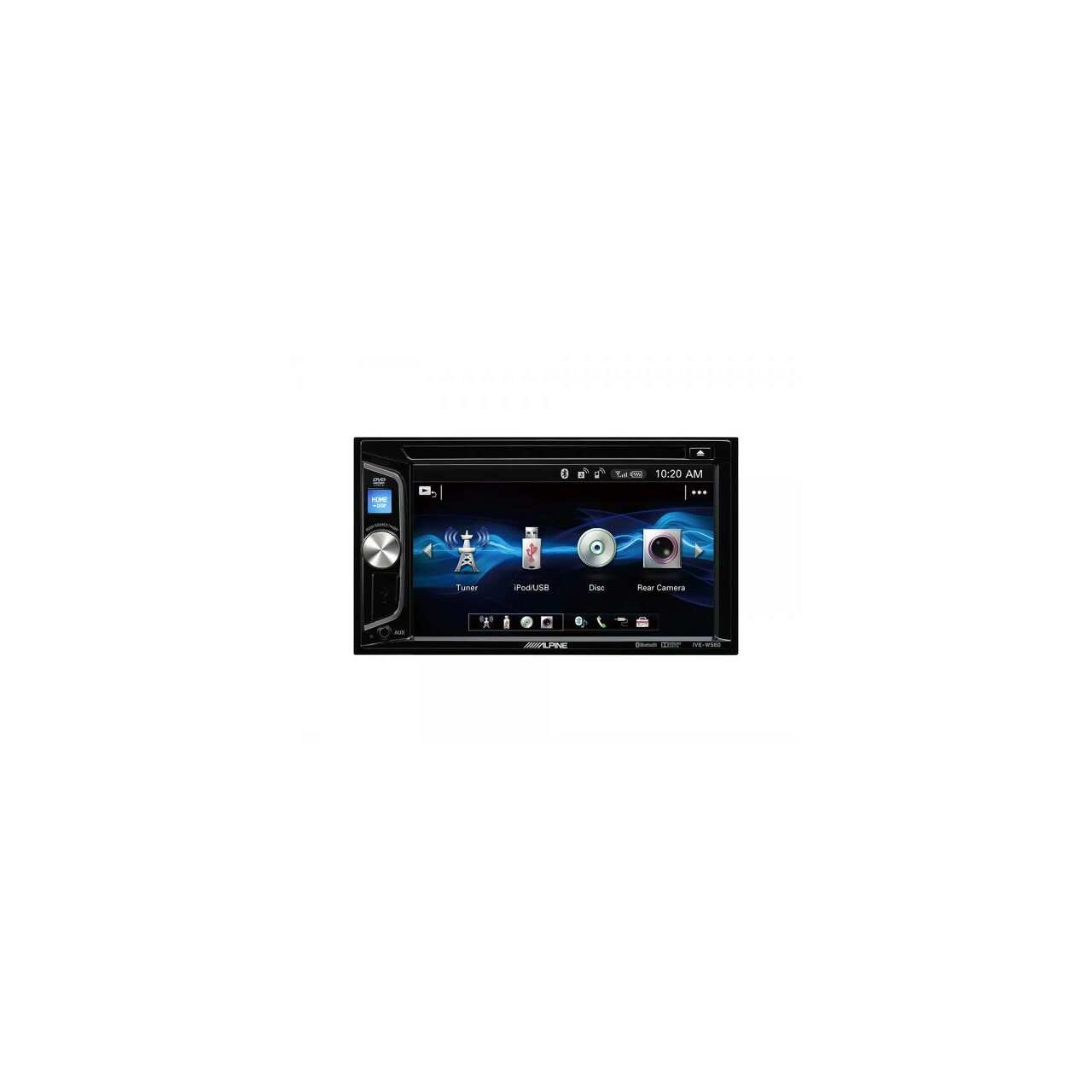

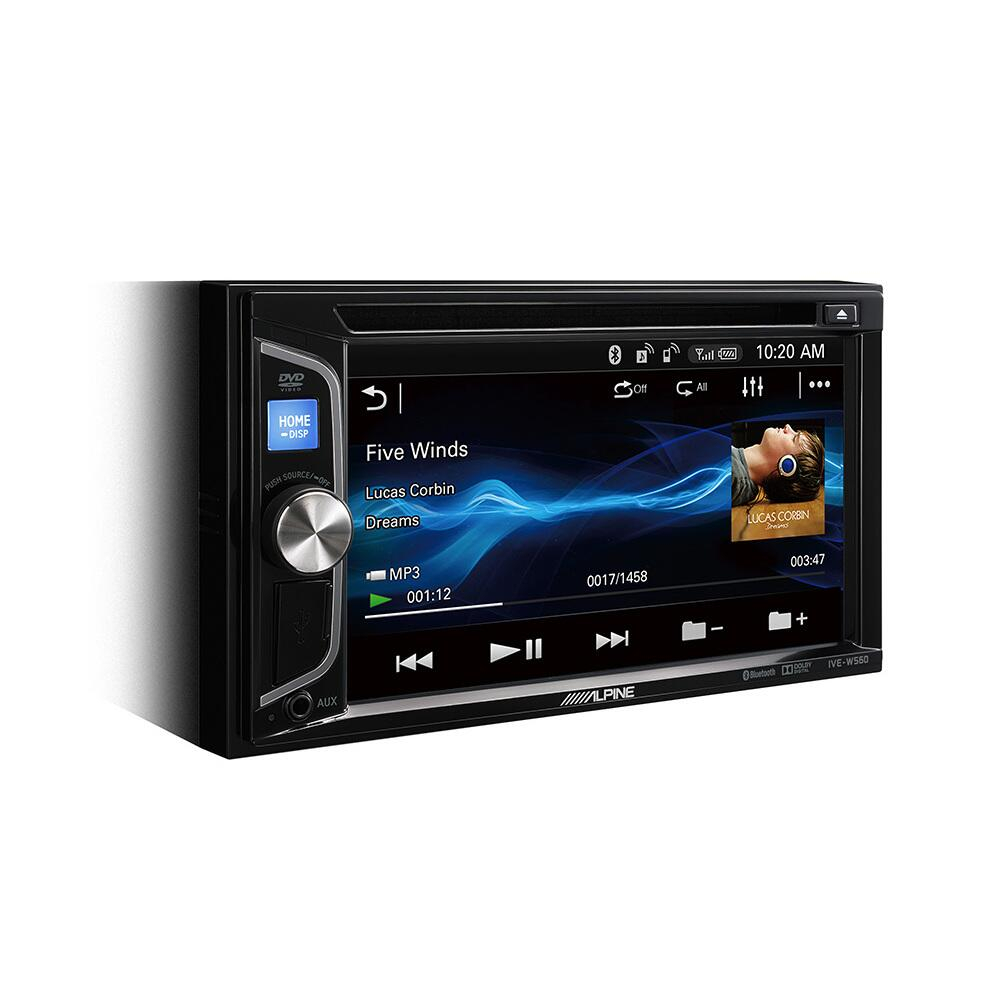

IVE-W560BT SISTEM MULTIMEDIA ALPINE DE 6.2" CU DVD/USB/BLUETOOTH

SISTEM DVD MULTIMEDIA 2-DIN CU ECRAN DE 6,2″

• IVE-W560BT dispune de o interfata cu utilizatorul in limba engleză, germană și franceză!
• IVE-W560BT-R (al 2-lea model) dispune de o interfata cu utilizatorul in limba engleza, rusa si italiana.
• Dacă dețineți un telefon Android, il puteți conecta prin USB la IVE-W560BT/IVE-W560BT-R pentru a avea acces la toate melodiile stocate pe telefon.
• Siri – Siri Eyes Free vă permite să utilizați iPhone-ul vorbind direct in microfon. Această funcție necesită să conectați un iPhone la aparat cu BLUETOOTH Auto Pairing.
• Bluetooth incorporat, puteți conecta cu ușurință telefonul mobil la Media Station. Functia Apelare Vocala prin Bluetooth®.
• Aveți posibilitatea să conectați un tuner DVB-T pentru vizionare TV cu calitate digitală și sa faceti upgrade-uri diferite prin USB.
• IVE-W560BT reda toate videoclipurile preferate, inclusiv fisiere de pe iPod și Xvid prin USB, și DVD-V/XviD/MP3/WMA.

Caracteristici tehnice:

Tuner

• Memory Pre-sets: Pre-set Stations (FM:18, AM:12)
• Memory: Auto Memory
• Seek Mode: Local

RDS

• RDS Functions: AF, TA, TP, PTY, NEWS, EON

BLUETOOTH®

• Built-in BLUETOOTH®
• Hands Free Calling: HFP (Hands Free Profile)
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Compatible
• Phone Book Synchronization
• Phone Book Search: Alphabet search
• Speed Dial: 6 Pre-set Memory
• Voice Dial Operation (depends on mobile phone)
• Auto Answer
• Call Waiting
• Call History Display: Dialled Call
• Redial Function
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• Signal Strength Indicator
• Microphone Included

Made for iPod® / iPhone®

• Compatibility for iPod/iPhone: Made for iPod touch 5th/4th/3rd Gen., iPod nano 7th/6th/5th Gen., iPod classic 160GB/120GB/80GB, iPhone:6S, 6S Plus, 6, 6 Plus, 5, 5S, 4S, 4, iPhone 3GS
• Connection: USB Connection
• Music Playback
• Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer
• Alphabet Search
• Direct iPod/iPhone Control
• M.I.X. (Shuffle) Play: Song, Album
• Repeat
• Battery Charging
• App mode for iPod Touch, iPhone (from iOS 4)

Disc Player

• Disc Type: DVD/CD Player
• Disc Playback Type: DVD-Video, DVD±R/RW, CDDA, CD-R/RW, Video CD
• Playable Format: MP3/Xvid/MPEG-4/JPEG
• M.I.X. Random Play
• Repeat
• DVD Direct Menu Control
• CD Text Display
• 24 Bit DAC

USB Media Connection

• Music & Video Playback Compatible
• Playable Format: MP3/Xvid/MPEG-4/JPEG
• USB Class: Mass Storage Class
• Folder Up/Down
• Banking: Max. 256 folders, 2000 songs

Sound Tuning

• Subwoofer Level Adjustment
• Subwoofer System Select: Subwoofer Level Control Management
• High Pass Filter / Low Pass Filter
• 3 Band EQ (10 pre-sets + custom)

General

• Power Output: 4 x 50 W High Power Amplifier
• Display: 6.2 inch WVGA High Resolution Display
• Control Type: Touch Screen and Rotary Encoder
• Face Colour: Black
• Blue Illumination
• PreOut: 2 PreOuts (2V, Front + Rear/Subwoofer)
• AUX-Out: 1 Video Aux Output
• AUX-In: Front Aux Input (for Audio, 3.5mm mini jack), 1 A/V Aux Input
• Steering Wheel Remote Control Ready (requires additional Alpine interface)
• Remote Control Ready
• Camera Connection: RCA Connection Compatible
• Clock
• Auto Dimmer
• Security Code Anti-theft
• Detachable 2DIN Size Trim Plate
• Remote Turn-On
• Remote control included: RUE-4233
• Microphone included
• The IVE-W560BT features an English, German and French interface
• The IVE-W560BT-R features an English, Russian and Italian interface

Screen

• Screen Size: 6.2 inch Wide VGA Screen
• LCD Type: Wide LCD colour monitor
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels
• Colour system: PAL/NTSC/SECAM/PAL-M automatic select

Max Power Output Ratings

• Max Power Output: 4 x 50W

FM Tuner

• Tuning Range: 87.5 – 108.0 MHz
• Antenna (aerial) terminal: External antenna (aerial) connector
• Usable Sensitivity: 10 dBf
• Selectivity: 70 dB at 400 kHz
• Signal-to-Noise Ratio: 70 dB (mono)
• Separation at 1 kHz: 30 dB
• Frequency response: 20 – 15,000 Hz

AM Tuner

• Tuning Range: 531 – 1,602 kHz
• Antenna (aerial) terminal: External antenna (aerial) connector
• Intermediate frequency: 9,267 kHz or 9,258 kHz/4.5 kHz
• Sensitivity: 44 μV

Disc Player

• Frequency Response: 20 – 20k Hz
• Total Harmonic Distortion: 0.05%
• Wow & Flutter (%WRMS): B.M.L. (Below measurable limit)
• Signal-to-Noise Ratio: 80 dB
• Video Signal-to-Noise Ratio: DVD: 60 dB
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• Xvid Decoding: “.avi” ,“MPEG 4” File

USB

• USB Requirements: USB 1.1 / 2.0
• Max. Power Consumption: 1,000 mA
• USB Class: Mass Storage Class
• File System: FAT 12/16/32
• Frequency Response: 20 – 20k Hz (±1 dB)
• Channel Separation (at 1kHz): 75 dB
• Dynamic Range (at 1kHz): 95 dB
• Total Harmonic Distortion (at 1kHz): 0.01%
• Wow & Flutter (%WRMS): B.M.L.
• Signal-to-Noise Ratio: 80 dB
• Horizontal Resolution: 500 lines or greater
• Video Output Level: 1 Vp-p (75 ohms)
• Video Signal-to-Noise Ratio: DVD: 60 dB
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio

BLUETOOTH®

• BLUETOOTH® Version : Bluetooth V3.0
• Output Power: +4 dBm Maximum (Power class 2)
• HFP (Hands Free Profile) 1.6
• A2DP (Advanced Audio Distribution Profile) 1.2
• AVRCP (Audio/Video Remote Control Profile) 1.4
• PBAP (Phone Book Access Profile)
• OPP (Object Push Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer Level Adjustment: -10 to +10 step
• High Pass Filter & Low Pass Filter: Off / 80 / 100 / 120 / 140 / 160 Hz
• 3 Band EQ High / Mid / Low -10 to +10 steps

General

• Power Requirement: 12 V DC car battery (negative ground (earth)
• Weight: 1.7 kg

Dimensions

• DIN Size: 2DIN
• Chassis Size (W x H x D) mm: 178 x 101 x 169 mm
