DMX-6018BT MEDIA PLAYER 2DIN KENWOOD DE 7" CU USB/BLUETOOTH

DMX-6018BT MEDIA PLAYER 2DIN KENWOOD DE 7" CU USB/BLUETOOTH

Name: DMX-6018BT MEDIA PLAYER 2DIN KENWOOD DE 7" CU USB/BLUETOOTH
Brand: Kenwood
SKU: DMX-6018BT
Price: 2099.7 RON
Availability: InStock

2.099,70 Lei

In stoc

Limita stoc

Adauga in cos

Cod Produs: DMX-6018BT Ai nevoie de ajutor? 0770.631.375 / 0762.141.111

Adauga la Favorite

Descriere
Review-uri (0)

Media Player digital cu USB/Bluetooth si ecran de 7

Media player fara mecanism AV WVGA 7"
Bluetooth încorporat (HFP și streaming audio)
Pregatire pentru aplicația KENWOOD Remote
USB 2.0 din spate, încărcare rapidă 1,5A pentru smartphone
Funcționează cu WebLink
Funcționează cu aplicația Spotify
Redare Flac (96 kHz/24 biți)
Intrare AV, ieșire video, intrare RearCam
3 ieșiri RCA (față-spate-sub) (4,0 V)
DSP - 13-Band EQ - DTA încorporat

Caracteristici tehnice:

General Features

DIN Size	2 DIN
On Screen Display (OSD) Operation	Yes
Smooth GUI	Yes
Selectable GUI Background Wallpaper	Yes
Key Illumination	Variable color
Installer Memory	Yes
Back-up Memory	Yes
Attenuator with Smooth Volume Return	Yes
Touch Sensor Tone	Yes
Optional IR remote controller	Yes, (KNA-RCDV331)
Digital Clock (24H)	Yes
ISO connector	Yes
Bluetooth unit built-in	Yes
Firmware upgreadable	Yes

Monitor Features

Screen Type	7,0" Wide VGA
High Resolution VGA Display	Yes
LCD type	7.0 inch Wide VGA
LCD backlight	LED
Display Mode	3 Mode
Display full mode	default
Display auto mode	Full - Normal/Regular
Display Normal / Regular mode	Normal
Screen adjust: Noon / Night Memory	Yes
Screen adjust: Brightness	Yes
Screen adjust: Tint (Only NTSC)	Yes
Screen adjust: Colour	Yes
Screen adjust: Contrast	Yes
Screen adjust: Blacklight	Yes
Dimmer function	Manual/Sync
Dimmer Level	Auto/On/Off
Visual Source Mode	WebLink
Touch Panel	Clear resistive
Display Type	Glare
Mechanism type	Auto Slide
Mechanism Angle Adjustment	7 steps
Mechanism Postion Memory	Yes
LCD viewing angle control	"0" (Default) / "-1" / "-2" / "-3"
NTSC/PAL judge	Yes (Auto)
Display Off Mode	Yes
AV Off	Yes

Multimedia GUI Features

Menu text	21 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian
Software updates (SoC)	by USB
Graphics Type	Graphics
Demonstration Mode	Yes
Top Menu Customize	Yes
Background Customize	6 preset (5 static, illumi-sync)
Wallpaper colour change	yes
Animation	Yes
Screen Capture	Yes
R-CAM interrupt	Yes
R-CAM Caution On Screen Display	Yes
R-CAM Parking Guide Lines	Yes

Tuner Features

Station Select	Manual / Preset (List)
Tuner Type	SiLab
FM Reception	Yes
AM (MW/LW) Reception	Yes
Tuner Presets (FM/AM)	20 Presets (15FM / 5AM)
Tuning mode	Auto1/Auto2/Manual
Up/Down Seek/Scan	Yes
FM Stereo / Mono Selector	Yes
Radio Data System	Yes
Radio Text Plus	Yes
Traffic Information	Yes
Local search	Yes
AF Regional	Selectable: AF/AF Reg/OFF
Auto TP search	Yes
Enhanced Other Networks Function (EON)	Yes
Program Type Function (PTY)	Yes
PTY News	Off/0/10/20/.../80/90min

Bluetooth General Features

Max num. of regist. phones for HFP & A2DP	10 phones
Hands Free Profile (HPF)	V1.6
Hands Free Profile with High Sound Quality	HFP V1.6
2 phones fulltime connection	Yes
Advanced Audio Distribution Profile (A2DP)	Yes, V1.3
High Quality Audio Streaming	SBC/AAC
Serial Port Profile (SPP)	Yes, V1.2
Simple Secure Pairing (SSP)	Yes
Phonebook Access Profile (PBAP)	Yes
Generic Access Profile (GAP)	Yes
Service Discovery Profile (SDP)	Yes
Wireless Music Browsing (AVRCP 1.5)	Yes
iPhone automatic pairing via USB	Yes
Voice Dialing / Siri Eyes Free	Yes
Spotify App Link	Yes
KENWOOD Remote App Ready	Yes
Catchphone / Call Waiting	Yes
Private mode	Yes
Phone numbers hold:	up to 1000 per registed cell-phone.
Alphabet Search (Phonebook)	Yes
Noise Canceller	Yes
Echo Canceller	Yes
Signal strength display	Yes
Remaining battery display	Yes
High-quality noise canceling microphone	Included (rear wired)
Bluetooth firmware upgradeable	Yes
* depends on phone model/make

CE_Playable Audio file

AAC (*.m4a) files are playable	USB
MP3 files are playable
WMA (.wma) files are playable	USB
WAV (.wav) files are playable	USB
FLAC files are playable	USB

CE_Playable Video file

MPEG1/2 files are playable	USB
MPEG4 files are playable	USB
WMV files are playable	USB
H.264 files are playable	USB
mkv files are playable	USB
JPEG files are playable	USB (for wallpaper)
BMP files are playable	USB (for wallpaper)
PNG files are playable	USB (for wallpaper)

USB Features

Rear USB Terminal	Yes, 1m pig Tail
USB Type	2.0 High speed
Drive Change	Yes
Android USB Mass Storage Class (MSC)	Yes
Works with WebLink	Yes
Repeat Play	Folder/File/All
Random play	yes
Category search	Yes
Resume play	Yes
Time code display	Yes
1,5A Charge Capability for Smartphone (BC 1.2).	Yes

iPod Features

Made for iPod & iPhone *	Yes
USB Direct Control (Audio, 1 wire, Lightning-connector)	with optional cable KCA-iP103
Music playback	Yes
Album art support	Yes
Music library search	Yes
Alphabet search	Yes
Direct Search	Yes
iPod EQ Mode	Yes
Control by hand	Yes
Spotify App Link	Yes
iPod Accessory Protocol (iAP)	iAP2
iAP over Bluetooth	Yes
Reverse browsing	Yes
Voice Control using Siri.	Yes
Bluetooth Auto Paring for iPhone	Yes
Battery charge + power control	Yes
* Always update to latest Apple firmware

Audio features

Max. Output Power (MOSFET Power IC)	4 x 50W
Pre-out	3RCA: Front/Rear/Subwoofer
Pre-out Output Level	4V
Volume Offset	Yes
Subwoofer Phase Control	Yes
Subwoofer Reference Level Adj.	Yes
Balance/Fader Control	Yes
Loudness Control	Yes
Bass Boost	Yes
Att.(-20dB) with smooth Volume Return	Yes
Digital Sound Processor (DSP)	Yes
Beep On/Off	Yes

Multimedia DSP Features

DSP Chip	AK7601
Position Control	Yes
Graphic Equalizer	13 bands
G-EQ manual setting	Yes
Time Alignment	0cm ~ 610cm
HPF Cut Off Frequency	14
HPF Cut Slope Level	4
Low Pass Filter (LPF)	Yes (Non-Fading)
LPF Cut Off Frequency	14
LPF Cut Slope Level	4
Cross-over	Yes
3-Way X'Over	Yes
Source DSP Memory	Yes
Speaker Size Control	Yes
Car type control	Yes, ► Off► Compact► Sedan► Wagon► Minivan► SUV► Passenger Van
Channel Level Control	Yes
Space Enhancer	Yes
Supreme	Yes
Realizer	Yes
Loudness	Yes
Stage EQ	Yes
Tweeter volume	Yes
Bass Boost	Yes
Drive EQ	Yes
Front Focus	Yes

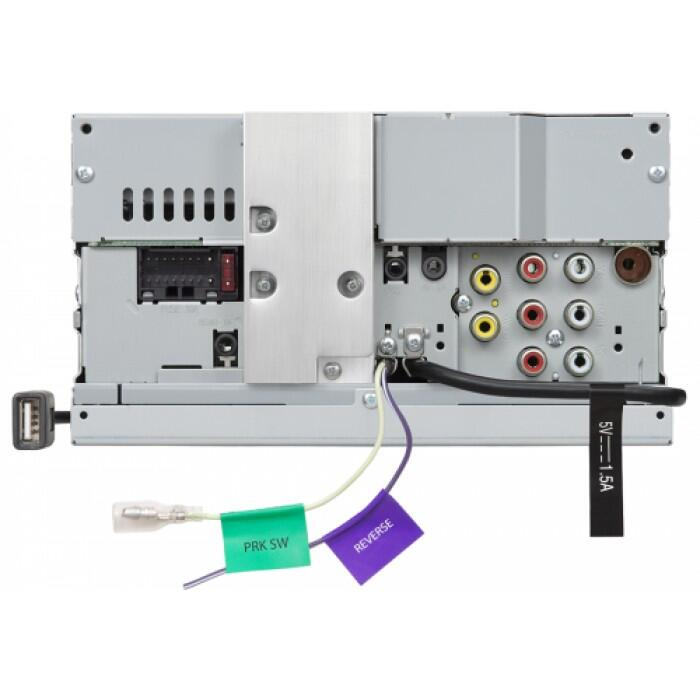

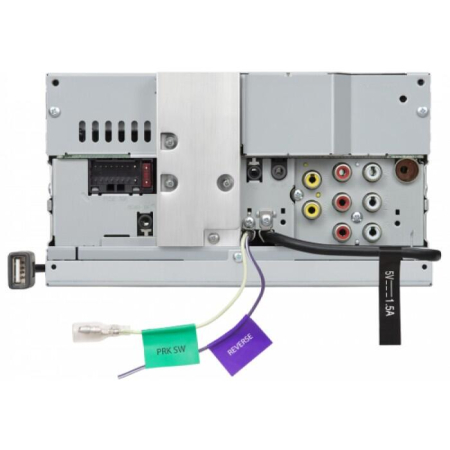

Connectivity

USB interface	Rear Side
OEM Wired Remote Control ready	Yes
Programmable OEM Steeringwheel Remote Function	Yes
DC-Cord	Mitsumi to ISO
Parking sensor wire	Yes
Power Control (P.CON) wire	Yes
2-way (Tel/Navi) mute wire	Yes
Dimmer control wire	Yes
AV-Input (Non Switchable)
AV Output	Video only (RCA)
Reverse sensor wire	Yes
Rear View Camera Input
Amplifier pre-out	RCA: Front/Rear/Subwoofer
FM Antenna Input
External microphone input

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)	Yes
FM Usable Sensitivity	0.56μV/75ohm (S/N 6.2dBf)
FM Quieting Sensitivity	1.58μV/75ohm (S/N 15.2dBf)
FM Frequency Response	30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)	68dB
FM Selectivity(DIN)	over 80dB (±400kHz)
FM Stereo Separation (1kHz)	40dB
MW range: 531kHz - 1611kHz (9kHz step)	Yes
MW Usable Sensitivity	28.5μV
LW range: 153kHz - 279kHz (9kHz step)	Yes
LW Usable Sensitivity	45μV

Bluetooth specifications

Technology	Bluetooth V3.0
Frequency	2.402 - 2.48 GHz
Output power	+4dBm(max), 0dBm (AVE) power class 2
Maximum range	Line of sight approx. 10 meter
Handsfree profile (HFP)	Yes, V1.6
Serial port profile (SPP)	Yes, 1.2
Service discovery protocol (SDP)	Yes
Advanced audio distribution profile (A2DP)	Yes, 1.3
Audio Codec	SBC/AAC
Generic access profile (GAP)	Yes
Phonebook access profile (PBAP)	Yes, 1.2

USB Specifications

USB Version compatibility	USB 2.0 High Speed
File System	FAT 16/32, NTFS
Maximum Supply current	1500mA
D/A Converter	24bit
MPEG1 Decoder	MPEG-1 with MPEG Audio Layer 2
MPEG2 Decoder	MPEG-2 with MPEG Audio Layer 2
MPEG4 Decoder	(.mp4, .m4v)
H.264 Decoder	mp4, .m4v, .avi, flv, f4v),
mkv Decoder	(.mkv)
WMV Decoder	Maximum resolution: 640 × 480
MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
WMA Decode	Compliant with Windows Media Audio
AAC Decode	AAC-LC "m4a" Files
WAV Decode	Linear - PCM Files
flac Decode	FLAC files up to 96kHz/24bit
S/N Ratio	104 dB (1kHz)
Dynamic Range	90dB

Audio Specifications

Maximum Power	50W x 4
Output Power (DIN45324,+B=14.4v)	22W x 4
Preout Level	4000mV / 10kOhm,
Preout Impedance	≤ 600Ohm
Speaker Impedance	4Ohm ~ 8Ohm
Graphical Equalizer	13-Band
G. EQ. Frequency (Hz)	62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
G. EQ. Gain (dB)	-8/-7/-6/.../-1/0/1/.../6/7/8
Subwoofer Level (dB)	-15 dB to +15dB

DSP Specifications

Equalizer Type	Graphic
Frequency band	13 bands
Frequency band	62/100/160/ ~ / 6.3k/10k/16k
Equalizer Gain	–9db ~ +9db
Car type	► Off► Compact► Sedan► Wagon► Minivan► SUV► Passenger Van
Speaker type - Front	OEM/8/10/12/13/16/17/18cm/4x6"/5x7"/6x8"/6x9"/7x10"
Speaker type - Rear	OEM/8/10/12/13/16/17/18cm/4x6"/5x7"/6x8"/6x9"/7x10"
Speaker type - Sub woofer	None/16/20/25/30/38cm
2-Way X'over / Front/Rear (HPF) / Frequency	Trough/30/40/50/ ~ / 180/220/250Hz
2-Way X'over / Front/Rear (HPF) / Slope	-6/-12/-18/-24 (dB/oct)
2-Way X'over / Subwoofer (LPF) / Frequency	30/40/50/ ~ / 180/220/250/Trough
2-Way X'over / Subwoofer (LPF) / Slope	-6/-12/-18/-24 (dB/oct)
3-Way X'Over / High Pass Filter Frequency	1k/1.6k/2.5k/ ~ / 8k/10k/12.5kHz
3-Way X'Over / High Pass Filter Slope	-6/-12 (dB)
3-Way X'Over / Band Pass Filter Frequency	Trough/30/40/50/ ~ / 180/220/250Hz
3-Way X'Over / Band Pass Filter Slope	-6/-12 (dB/Oct)
3-Way X'Over / Low Pass Filter Frequency	1k/1.6k/2.5k/ ~ / 8k/10k/12.5kHz/Trough
3-Way X'Over / Low Pass Filter Slope	-6/-12 (dB/Oct)
Position: 2-Way (Front/Rear/Sub)Delay	0cm ~ 610cm (1cm step)
Subwoofer Level	-50dB ~ 10dB
Position: 3-Way (Tw/Mid/Sub) Delay	0cm ~ 610cm (1cm step)
Postion Gain	-50dB ~ 10dB

Video Specifications

Color System of External Video Input	NTSC/PAL
External video input level (mini-jack)	1 Vpp / 75 Ohm
External audio max. input level (mini-jack)	2 Vpp / 25 kOhm
Video input level (RCA)	1 Vpp, 75 Ohms
Video Output Level (RCA)	1 Vpp / 75 Ohm

Monitor Specifications

Screen size (Diagonal)	6.95 Inches Wide
Screen Size (WxH)	156.6 x 81.6mm
Display system	Transparent TN LCD Panel
Drive system	TFT Active Matrix System
Number of Pixels	1152000pixels (800(H) x 480(V) x RGB)
Effective pixels	99.99%
Pixel arrangement	RGB Striped
Back lighting	LED (Light Emitting Diode)

General Specifications

Operating voltage	14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption	10A
Dimensions (WxHxD)	182 x 111 x 160mm
Weight, inclu. sleeve & escutcheon	2.2 kg
Operation Temperature Range	-10°C ~ 60°C
Instruction Manuals	Multi-language quick Guide
