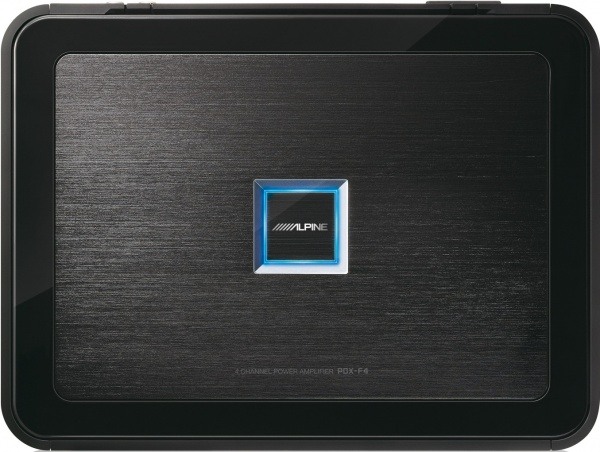

Amplificator auto Alpine PDX-F4

Amplificator auto Alpine

Caracteristici generale

• Tip amplificator: Class-D (Digital)
• Numar canale: 4/3/2
• Protectie:termica.
• Protectie:baterie descarcata
• Tipul sursei de putere : DC-DC PWM
• Tip circuit: STAR
• Protectie supra sarcina automata .
• Indicator putere: led albastru
• Crossover cu corectia frecventelor joase si innalte
• Pre-Amp Stage: Discrete
• Design-ul placii : sticla EPOXY cu 6 straturi tip PC
• Controlul amplificarii : Control ajustabil continuu
• Compatibil telecomanda bas (optional)

Putere RMS:

• In 4 ohmi : 4 x 100W (@ 14.4V +-1%THD+N, 20Hz - 20kHz)
• In 2 ohmi : 4 x 100W (@ 14.4V +-1%THD+N, 20Hz - 20kHz)
• In punte 4ohmi :2 x 200W (≤1%THD+N)

Sunet

• Crossover: 30Hz-400Hz, -12dB/oct. (Low-Pass/High-Pass/OFF Selectable)

Dimensiuni

• Dimensiuni (WxHxD): 257mm x 192mm x 50.8mm

General

• Putere consumata : 14.4V DC (11V to 16V)
• Sensibilitate intrare : 0.2 - 4.0V
• Dimensiunea cablului : 25 mm² (plus si minus), 4 mm² (Remote), 10 mm² (boxe)
• Raspuns in frecventa : 5Hz - 100 kHz / 0dB ~ (200Hz/-3dB)
• Impedanta suportata : 4 sau 2 ohmi
• Raport semnal / zgomot : 98 dBA
