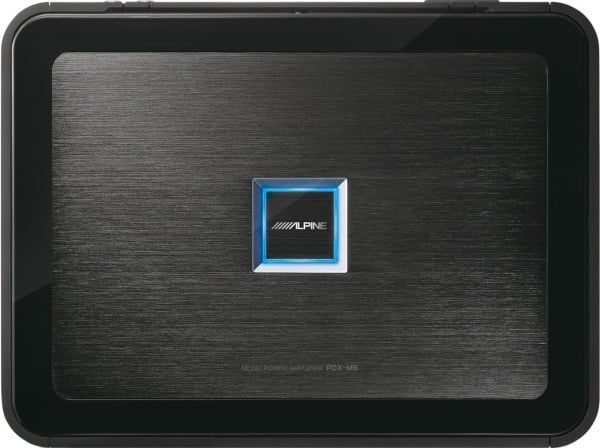

PDX-M6 AMPLIFICATOR ALPINE MONO, 600W
![PDX-M6 AMPLIFICATOR ALPINE MONO, 600W [1]](https://gomagcdn.ro/domains3/auto100.ro/files/product/original/amplificator-auto-pdx-alpine-pdx-m6-298388.jpg "PDX-M6 AMPLIFICATOR ALPINE MONO, 600W [1]")
- Descriere
- Caracteristici
- Review-uri (0)
AMPLIFICATOR AUTO DIGITAL MONO
- Seria PDX este complet reproiectata pentru a imbunatati performantele, calitatea sunetului si fiabilitatea. Seria PDX este pentru adevaratii audiofili, toate acestea intr-o dimensiune compacta.
- Pe canal in 4 Ohmi: 1 x 600w
- Pe canal in 2 Ohmi: 1 x 600w
Caracteristici tehnice:
Install
- Connectors: Quick Disconnect Terminals (Power Terminal and Speaker Terminals)
- Terminal Layout: One-Sided
- Mounting Design: Easy Stacking and Clean-look installation
General
- Amplifier Type: Class-D (Digital)
- Channel Design: 1 Channel (Mono)
- Thermal Protection
- Low-battery Protection
- Power Supply: Resonant Mode Power Supply
- Power Supply Design: DC-DC PWM Power Supply
- Board Circuitry: STAR Circuit
- Current Protection: Auto Over-Current Protection
- Power Indicator: Top Mounted Blue LED Power/Status Indicator
- RCA Output: Non-Fading Pre-Amp Output
- Crossover: Adjustable Low Pass
- Pre-Amp Stage: Discrete
- Final Outputs: MOSFET
- Board Design: 6-Layer Glass Epoxy PC Board
- Gain Control: Adjustable
- Bass Control: Remote Bass Control (Sold Separately)
RMS Power Ratings
- Per channel into 4 Ohms: (@14.4V ≤1%THD+N) 600W x 1
- Per channel into 2 Ohms: (@14.4V ≤1%THD+N) 600W x 1
Sound Tuning
- Crossover: Variable, 50-400Hz (-24dB / oct ), (Variable, L.P.F Only, 1/2 ch)
- Subsonic Filter: OFF / 15Hz / 30Hz
Dimensions
- Heat Sink (WxHxD) mm: 257mm x 192mm x 50.8mm
General
- Power Requirements: 14.4V DC (11V to 16V)
- Input Sensitivity: Select Vol, 0.1V to 1.0V or 1.0V to 8.0V (For Rated Power)
- Cable size: 25 mm² (BATT and GND), 4 mm² (Remote), Up to 10 mm² (Speaker)
- Frequency Response: 5 Hz – 400 kHz / 0dB ~ -3dB (Reference: 1 W into 4 Ω)
- Speaker Impedance: 4 or 2 Ω
- Signal to Noise: CEA 2006 S/N Ratio (IHF A Weighted, Reference: 1W into 4Ω) 95 dBA
Nota:
Fotografia prezentata are caracter informativ si poate contine accesorii ce nu sunt incluse in pachetul standard al produsului sau pot exista diferente intre aceasta si produsul din magazin. Specificatiile tehnice sunt informative, pot fi schimbate fara instiintare prealabila si nu constituie obligativitate contractuala. Ne straduim sa oferim informatii cat mai exacte. Cu toate acestea este posibil ca unele specificatii sa le fi omis, sa nu ne fie cunoscute sau pot contine erori de operare. Va stam oricand la dispozitie pentru eventuale clarificari.
Garantie: 12 luni
