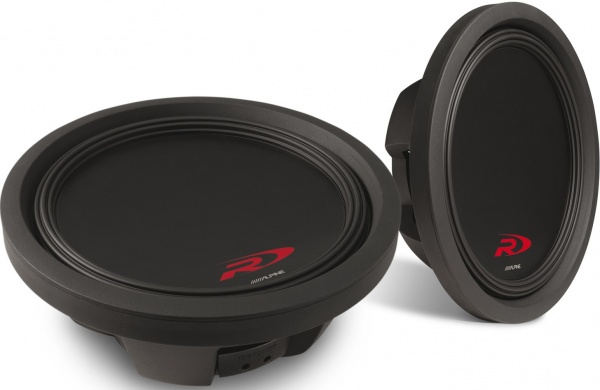

Difuzor Subwoofer Type-R, Alpine SWR-T12

SWR T12 SUBWOOFER 30cm,ULTRA PLAT,ALPINE

FEATURES

Diaphram

• Material: Aluminum
• Design: Structural Parabolic w/ Force Transfer Assembly

Surround

• Material: Injected Molded Santoprene
• Design: FEA-Optimized High Amplitude Mutli-Roll (H.A.M.R.) (Patent Pending)

Spider

• Material: Thermoplastic Elastomer (TPE)
• Design: Co-Molded Regressive w/ Integrated Tinsel Leads

Voice Coil

• Material: 220C Edge-Wound Copper Ribbon Wire
• Design: Oversized 100mm (4'') Underhung Voice Coil

Motor Structure

• Pole Geometry: FEA-Optimized Dual Compound Radius Curve w/ Pass Through Gap Design (Patent #6,639,993, 2 Patents Pending)
• Configuration: Radial Vented VC Heat Sink & Shorting Sleeve w/ Airflow Management System (Patent 7,634,101)

Frame

• Material: Cast Aluminum
• Design: Direct-Couple Shorting Sleeve/Heatsink and Frame Design

Terminals

• Layout: One Side
• Design: Heavy Duty Gold-Plated Insert Block Terminals

Tinsel Leads

• Design: Woven Spider Integration Design

Gasket

• Design: Concealed MountGasket System (US Patent #7,760,900)

SPECIFICATIONS

Power Handling

• CEA-2031 Power Rating: 600W
• Power Range: 300 - 600 Watts
• RMS Power Handling: 600W
• Peak Power Handling: 1800 Watts

Dimensions

• Mounting Depth: 89 mm (3.5'')
• Mounting Diameter: 275mm (10.85'')
• Displacement: 2.27 l (Front Mount)
• Added Volume: 1.42 l (Reverse Mount, Magnet Out)

General

• Frequency Response: 26Hz - 200Hz
