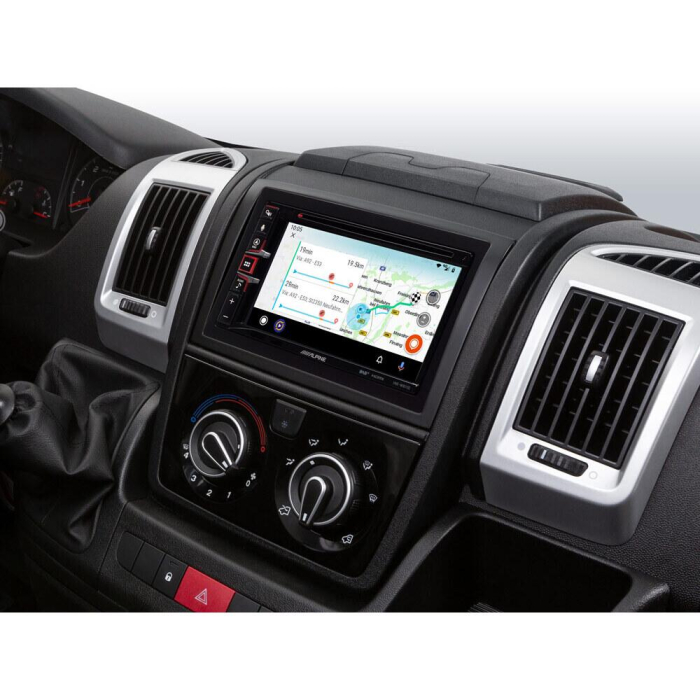

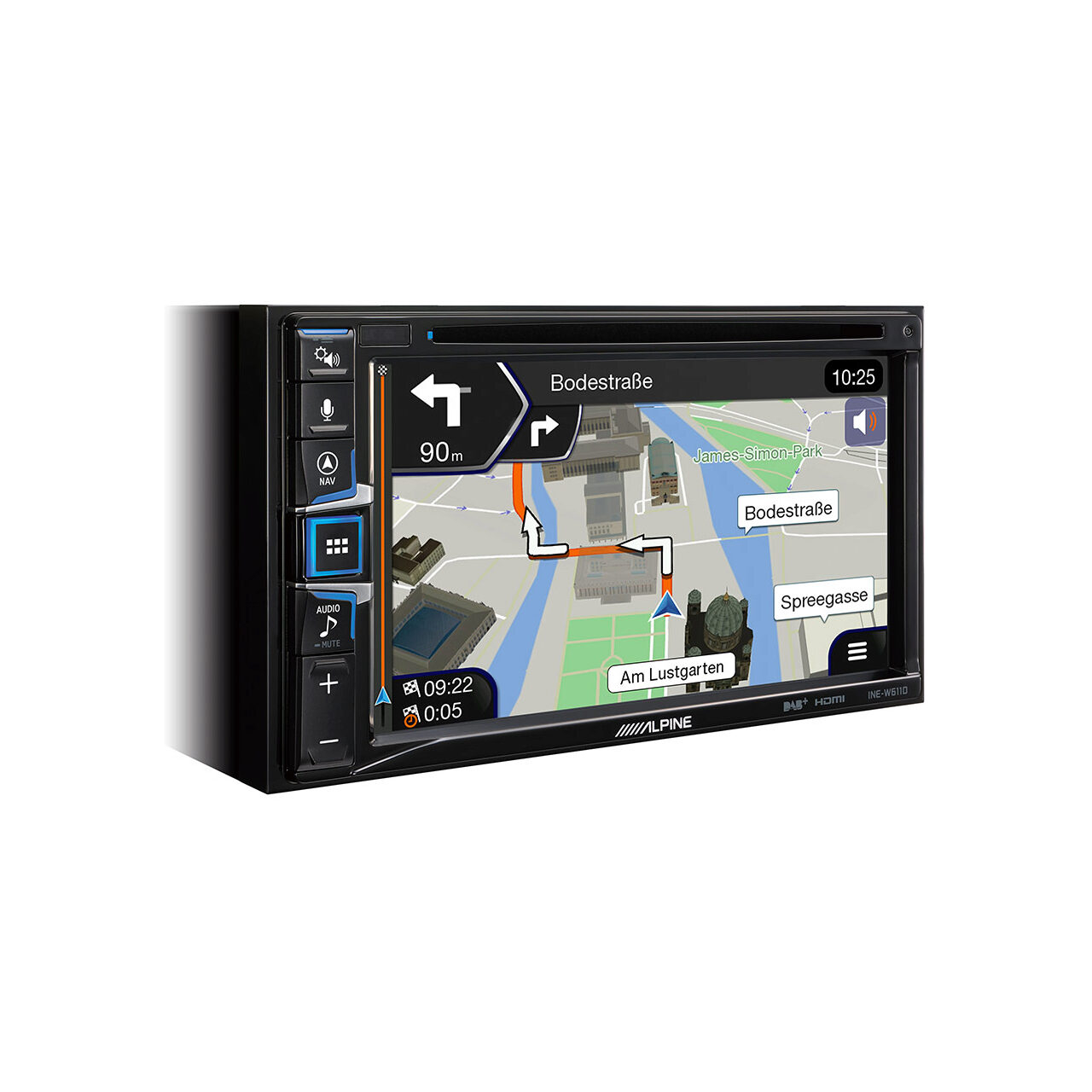

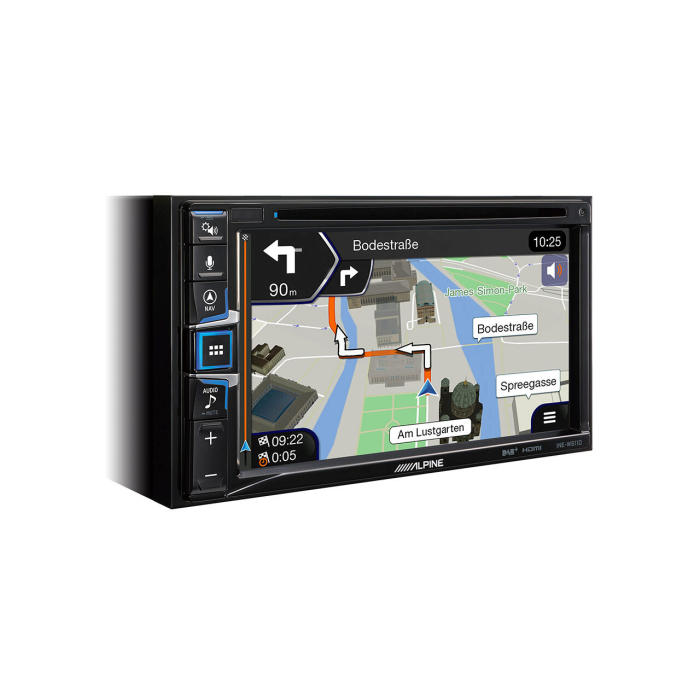

INE-W611D SISTEM CU NAVIGATIE ALPINE ALL-IN-ONE DE 6.5", CONTROL SMARTPHONE

Tuner

• Memory Presets (FM:18 / MW:6 / LW:6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: AF, TA, TP, PTY, NEWS, RADIO TEXT

BLUETOOTH®

• Built-in BLUETOOTH Module
• Hands Free Calling: HFP (Hands Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Phone Book Synchronization
• Device Name Display
• Auto Answer
• Call History Display: Dialed Call / Received Call / Missed Call
• Redial Function
• Microphone: Microphone Included

Disc Player

• Disc Type: DVD/CD Player
• Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/±RW
• Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX
• M.I.X. Random Play
• Repeat
• DVD Direct Menu Control
• CD Text Display
• CD Text Name Search
• DAC: 24 Bit DAC

Navigation Function

• TomTom Maps for 48 Countries (Western and Eastern Europe)
• 3 Years free-Of-Charge Map Update
• iGo Primo Nextgen Navigation
• 29 Menu Languages
• 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
• Advanced Address Search
• Post Code Search
• Advanced POI Functions
• Smart Routes using historic traffic patterns
• Advanced Route Planning
• Eco Route Search
• Advanced TMC Mode
• Map Display Mode: 2D Heading Up, 2D North Up, 3D
• Elevation Map Display:
• 3D Motorway Junction View: Junction View with Sign Post
• Lane Guidance
• Highway Mode
• Text-to-Speech
• Positioning Sensor: GPS and Glonass

USB Media Connection

• USB Video playback
• USB Connection: USB Extension Cable Included
• Music & Video Playback Compatible
• Music Playback: MP3/WMA/AAC Playback
• Video Playback: DivX Playback

Sound Tuning

• Subwoofer Level Adjustment
• Subwoofer Phase Select
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop,  Easy Listening, Country, Classical
• 6-Channel Digital Time Correction
• Digital Crossover Setting
• MediaXpander
• Application Volume Level Setting

Specifications

Display

• Screen Size: 6.5 inch
• LCD Type: Transparent type TN LCD
• Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB)) Effective Number of Picture Elements: 99% or more
• Illumination System: LED

Tuner

• FM Tuning Range: 87.5 – 108.0 Mhz
• AM / MW Tuning Range: 531 -1,602KHz
• LW Tuning Range: 153 – 281 kHz
• Mono Usable Sensitivity: 9.3 dBf (0.8 μV/75 ohms)
• 50 dB Quieting Sensitivity: 13.5 dBf (1.3 μV/75 ohms)
• Alternate Channel Selectivity: 80 dB

DAB

• Tuning Range BAND III:  174.928 – 239.2 MHz
• Tuning Range L-BAND: 1,452.96 – 1,490.624 MHz
• Usable Sensitivity: -101 dBm
• Signal-to-Noise Ratio: 85 dB

USB

• USB requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: USB (Mass Storage Class)
• File System: FAT16/32
• Decoding Formats: MP3/WMA/AAC/FLAC/OGG/APE/MP2
• Number of Channels: 2-Channels (Stereo)
• Total Harmonic Distortion: 0.016% (at 1 kHz)
• Dynamic Range: 95 dB (at 1 kHz)
• Signal-to-Noise Ratio: 85 Db
• Channel Separation: 75 dB (at 1 kHz)

HDMI

• Input Format : 480p/720p

Navigation

• GPS Reception frequency: 1,575.42 ±1 MHz
• GPS Reception sensitivity: -130 dBm max.

Bluetooth

• Bluetooth Specification: Bluetooth v4.0
• Frequency band: 2,402 – 2,480 MHz
• Output Power: -6~+4 dBm Ave. (Power class 2)
• HFP (Hands-Free Profile)
• PBAP (Phone Book Access Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

General

• Power Requirement: 14.4 V DC (11–16 V allowable)
• Operating temperature: 4°F to +140°F (-20°C to + 60°C)
• Maximum Power Output: 50W x 4
• Preout (Front, Rear):  4V/10k ohms (max.)
• Preout (Subwoofer): 4V/10k ohms (max.)
• Weight (unit only): 2.05 kg

Chassis Size

• Width: 178 mm
• Height: 100 mm
• Depth: 21.3 mm
