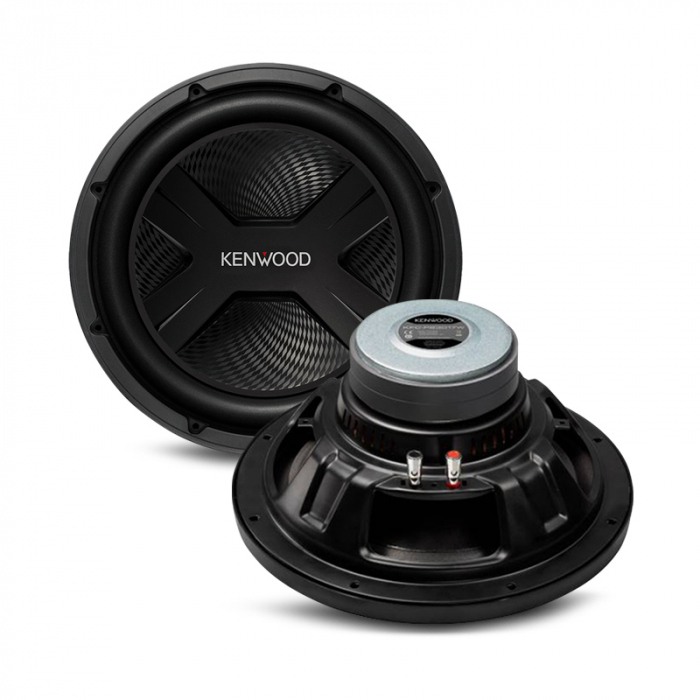

KFC-PS3017W SUBWOOFER KENWOOD DE 12" (30CM), 2000W
![KFC-PS3017W SUBWOOFER KENWOOD DE 12" (30CM), 2000W [1]](https://migrate.gomag.ro/auto100ro/product/original/subwoofer-kenwood-kfc-ps3017w-400-2000w-069033.jpg "KFC-PS3017W SUBWOOFER KENWOOD DE 12\" (30CM), 2000W [1]")
Cod Produs:
KFC-PS3017W
Ai nevoie de ajutor?
0770.631.375
/
0762.141.111
- Descriere
- Review-uri (0)
SUBWOOFER DE 30CM (12″), 400W RMS
- Difuzor de bas de 30cm ( fara incinta )
- Putere maxima: 2000W
- Putere nominala: 400W
- Impedanta: 4Ω
Caracteristici tehnice:
- Diametru difuzor: 30 cm
- Putere maxima: 2000W
- Putere nominala: 400W
- Tip Magnet: Ferita
- Material Con difuzor: Con din Polipropilena (PP)
- Grila de otel
- Impedanta: 4Ω
- Sensibilitate: 85dB/W/m
- Raspuns in frecventa: 29Hz ~ 300Hz
- Dimensiuni difuzor ( Lxhxl ): 326 x 326 x 155.4 mm
- Adancime montaj: 13.7 cm
- Diametru gaura de montaj Ø: 28 cm
- Greutate difuzor 4.2 kg
Speaker Features
| Speaker Size | 300mm |
| Oversized Dimension | Yes |
| Speaker Cone Design | Diamond-Array pattern |
| Magnet Type | Ferrit |
| Voice-coil | single, multi-layer voice coil |
| Terminals | Push Type |
| Spider | Stress controlled spider |
| Bottom-Yoke | Fully closed bottom yoke |
| Heat dissipation technology | Airflow control |
| Installation Capabillity | Sealed / Ported |
Speaker/woofer Specifications
| Peak Input Power | 2000W |
| Rated Input Power | 400W |
| Woofer Cone material | Polypropylene (PP) Cone |
| Center Cap Type | x-motif cap |
| Speaker Basket | Steel |
| Speaker Surround | Foam |
| Spider Type | Stress controlled Spider |
| Sensitivity | 85dB/W/m |
| Frequency Response | 29Hz ~ 300Hz |
| Speaker Impedance | 4Ω |
| Dimensions (W x H x D) | 326 x 326 x 155.4mm |
| Mounting Depth | 137mm |
| Mouting Hole Diameter Ø | 280mm |
| Speaker Weight | 4200gr |
Subwoofer Parameters
| Nominal impedance (Z) | 4Ω |
| DC resistance (Re) | 3.7Ω |
| Resonant frequency (FSO) | 24.4Hz |
| Mechanical Q factor (QMS) | 6.79 |
| Electrical Q factor (QES) | 0.52 |
| Total Q factor (QTS) | 0.483 |
| Voice coil inductance (LBM) | 2.04mH |
| Voice coil diameter (d) | 50mm |
| Force factor (BL) | 12.9T/m |
| Peak excursion Xmax | 5.9mm |
| Moving mass (MMS) | 152gr. |
| Volume accoustic compliance (VAS) | 104liter |
| Piston Area (SD) | 0.0512m² |
| Displacement | 1.2cc |
| Sealed box volume | 35.4liter |
| Sealed Box Dimensions | 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD) |
| Vented box volume | 42.5liter |
| Vented Box Dimensions | 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD) |
| Port dimensions (labyrinth) (W x H x L) | 35 x 324 x 736mm |
