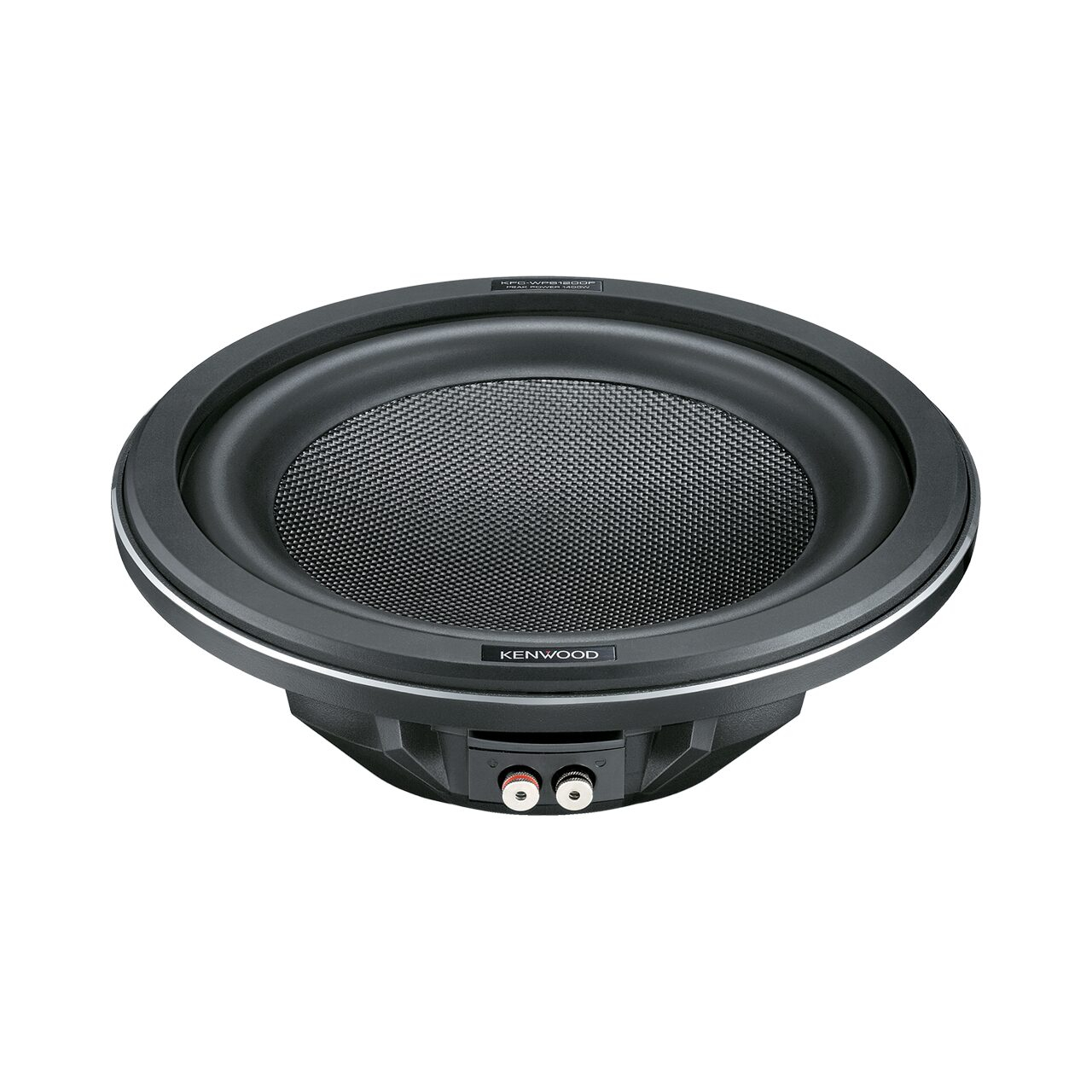

KFC-WPS1200F SUBWOOFER SLIM KENWOOD DE 12" (30CM), 1400W
![KFC-WPS1200F SUBWOOFER SLIM KENWOOD DE 12" (30CM), 1400W [0]](https://www.alarmservice.ro/userfiles/028bb694-6f5f-4cd1-bf3c-4891abf8586c/products/278825575_BIG.jpg "KFC-WPS1200F SUBWOOFER SLIM KENWOOD DE 12\" (30CM), 1400W [0]")
![KFC-WPS1200F SUBWOOFER SLIM KENWOOD DE 12" (30CM), 1400W [1]](https://www.alarmservice.ro/userfiles/028bb694-6f5f-4cd1-bf3c-4891abf8586c/gallery/KFC-WPS1200F-3_square.jpg#https://www.alarmservice.ro/userfiles/028bb694-6f5f-4cd1-bf3c-4891abf8586c/gallery/KFC-WPS1200F-2_square.jpg "KFC-WPS1200F SUBWOOFER SLIM KENWOOD DE 12\" (30CM), 1400W [1]")
Cod Produs:
KFC-WPS1200F
Ai nevoie de ajutor?
0770.631.375
/
0762.141.111
- Descriere
- Review-uri (0)
SUBWOOFER SLIM DE 30CM (12″), 350W RMS
- Difuzor de bas de 30cm ( fara incinta )
- Putere maxima: 1400W
- Putere nominala: 350W
- Impedanta: 4Ω
- Sensibilitate: 91dB/W/m
- Raspuns in frecventa: 30Hz ~ 800Hz
- Dimensiuni difuzor ( Lxhxl ): 325 x 325 x 121 mm
- Adancime montaj: 10 cm
- Diametru gaura de montaj Ø: 27.6 cm
- Greutate difuzor 7 kg
- Greutate totala: 8 kg
- Greutate magnet: 1.37 kg
Key Features
| 300mm Carbon-Glass Fiber Honeycomb Cone Subwoofer |
| Super Linear Spider |
| Smooth Linear Surround |
| Heat transfer structure |
| Shallow Mount |
Speaker Features
| Speaker Type | Subwoofer |
| Peak Input Power | 1400W |
| Rated Input Power | 350W |
| Speaker Size | 300mm |
| Speaker Cone Design | Carbon-Glass Fiber Honeycomb Cone |
| Magnet Type | Ferrit |
| Terminals | Silver-plated Push Type |
| Heat Transfer Motor Circuit | Yes |
| Magnet Cover | Aluminum Die-Cast Basket |
| Gasket Installation | two-sided |
| Installation Capabillity | Sealed/ Ported |
Speaker/woofer Specifications
| Peak Input Power | 1400W |
| Maximum Input Power | 700W |
| Rated Input Power | 350W |
| Woofer Cone material | Carbon-Glass Fiber Honeycomb Cone |
| Speaker Basket | Aluminum Die-Cast |
| Speaker Surround | Rubber |
| Spider Type | Super Linear Spider |
| Sensitivity | 91dB/W/m |
| Frequency Response | 30Hz ~ 800Hz |
| Speaker Impedance | 4Ω |

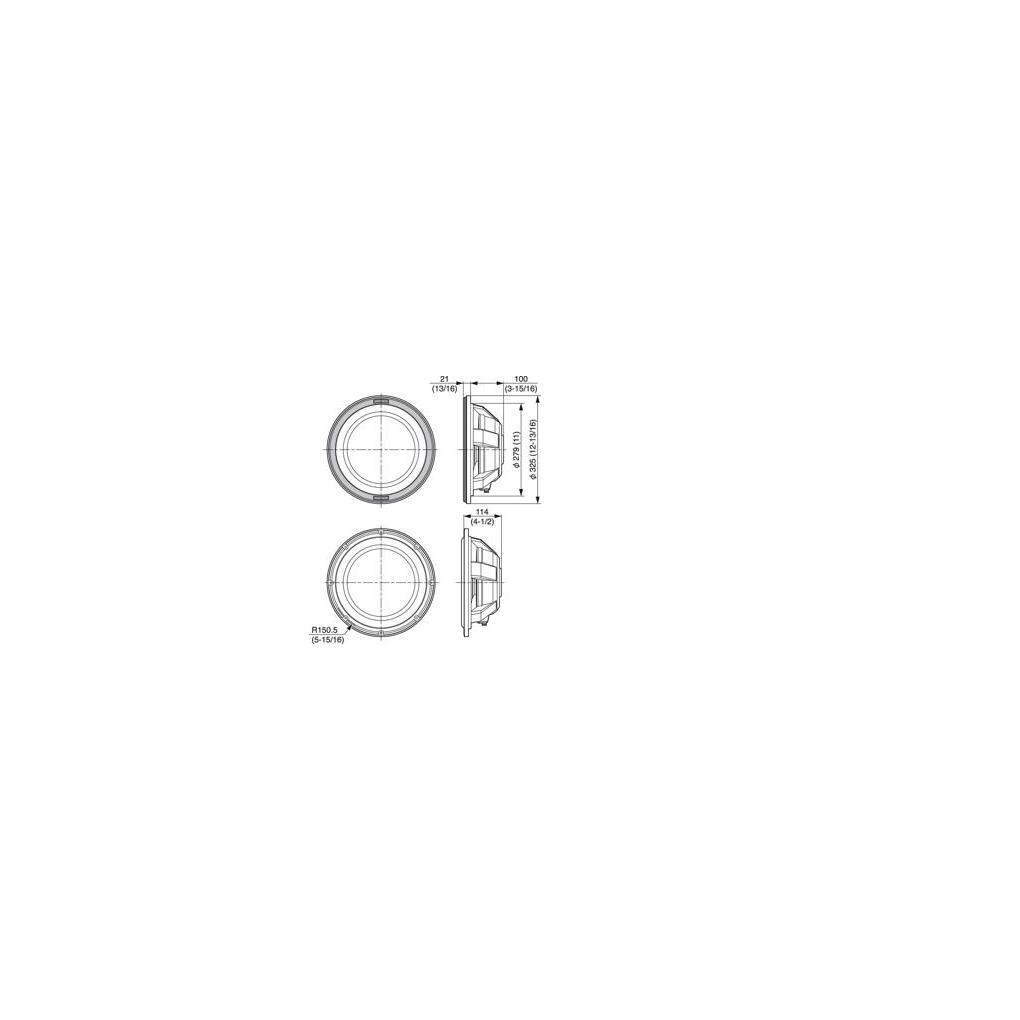

| Dimensions (W x H x D) | 325 x 325 x 121mm |
| Mounting Depth | 100mm |
| Mouting Hole Diameter Ø | 279mm |
| Speaker Weight | 7000gr |
| Gross Weight | 8000gr |
| Weight of Magnet | 1370gr |
Subwoofer Parameters
| Nominal impedance (Z) | 4Ω |
| DC resistance (Re) | 3.2Ω |
| Resonant frequency (FSO) | 24.8Hz |
| Mechanical Q factor (QMS) | 2.897 |
| Electrical Q factor (QES) | 0.67 |
| Total Q factor (QTS) | 0.544 |
| Voice coil inductance (LBM) | 2.8mH |
| Voice coil diameter (d) | 65mm |
| Force factor (BL) | 12.93T/m |
| Peak excursion Xmax | 8.5mm |
| Moving mass (MMS) | 224gr. |
| Volume accoustic compliance (VAS) | 62.685liter |
| Piston Area (SD) | 0.049m² |
| Displacement | 1740cc |
| Sealed box volume | 22.6liter |
| Sealed Box Dimensions (trapezium shape) | 773 x 362 x 107 x 172mm ( 21mm thick MDF)(WxHxD1xD2) |
| Vented box volume | 22.6liter |
| Vented Box Dimensions (trapezium shape) | 773 x 362 x 107 x 172mm ( 21mm thick MDF)(WxHxD1xD2) |
| Vented box port diameter/length | Ø 76mm / 102mm |
Accessories
| Screws (Parker-type) | Ø 5 x 30mm, 8 pieces |
| Badge | 2 pieces |
| Gasket | 1 piece(s) |
| Cushion | 1 piece(s) |
