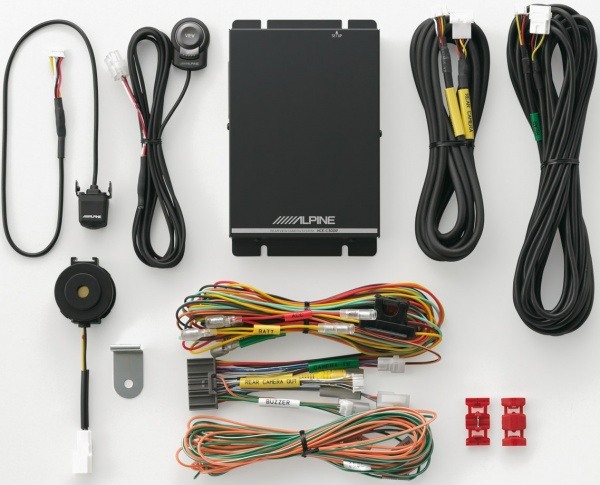

SPECIFICATIONS

Dimensions

• Camera: 21x 21x 23.8mm (except projection on the back)
• Box Unit: 176 x 110 x 30mm (except projection area)

General

• Power Requirement: 14.4 V.DC
• Negative Ground
• Power Consumption: Less than 2.5W
• Operating Temperature (Box Unit): -20°C - +60°C
• Weight Camera: 30g (including cable)
• Weight Box: 450g (including cable)

Camera

• Output Image: Mirror Image, VBS (NTSC Color Signal System), Aspect Ratio 4:3
• Output Drive Capacity: 75 Ohms
• Image Sensor: 1/4 Type Color CMOS Image Sensor
• Effective Number of Pixels: 640 (H) x 480 (V), Approximately 300,000 pixels
• Lens Focal Length: f=0.8mm
• Lens Brightness: F=2.6
• Angle of Field: Horizontal = 190°, Vertical = 155° (Control Unit Output Horizontal: 180°)
• S/N Ratio: 40 dB or more
• Resolution (Horizontal. Center Area): 250 TV Lines
• Operating Temperature: -30°C - +70°C
• Illumination Range: 2 lx or more
