Smart Power Meter 176-288V - 100A - 1 Faza

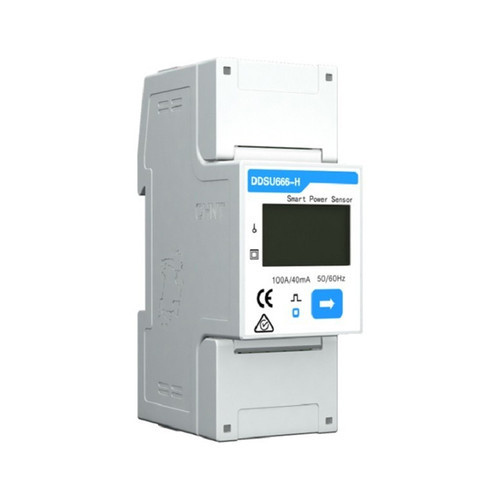

The Huawei Smart Power Sensor DDSU666-H is a single-phase current sensor for connection to the inverter. It is easy to operate and read out data via the built-in LCD screen. In addition, the component supports communication via RS485, so that the measured values can also be evaluated elsewhere. Commissioning of the current sensor for PV systems is simple and safe - the digital wizard guides you through the integration process. Once installed by one-click, the component meets the highest demands. The DDSU666-H smart power sensor is designed for use at industrial level and is particularly reliable.

The technical data of the sensor is also convincing, for example, its own power consumption is less than one watt - so the device works without consuming much power itself. The possible operating temperature is specified as -25 °C to +60 °C, the relative humidity can be 5 % to 95 %. The dimensions of 100 x 36 x 65.5 mm show that this is a compact component. It is mounted on the DIN35 top-hat rail. The input voltage is 176 VAC~288 VAC (phase / N). In operation, the Smart Power Sensor DDSU666-H achieves a measurement accuracy of +/-1 % (current, power and energy) and +/-0.01 Hz (frequency). The current sensor thus belongs to accuracy class >1. The scope of delivery includes the necessary accessories, i.e. a folding current transformer with 5 m cable length and an RS485 cable with 10 m length.

• 1-phase Smart Power Sensor
• 176-288 Volt Voltage
• Accuracy class > 1
• Easy operation via LCD display
• Power consumption ≤1 W
• Communication via RS485

Huawei Smart Power Sensor DDSU666-H - General Data

Operating temperature range: -25°C ~ +60 °C
Relative humidity: 5 % RH~ 95 % RH
Dimension (W x D x H): 100 x 36 x 65.5 mm
Mounting type: DIN35 rail
Weight (including cable): 1.2 kg
Power system type: 1P2W (1-phase)
Input voltage: 176 VAC~288 VAC (phase / N)
Power consumption: ≤ 0.8 W
Communication: RS485

Huawei Smart Power Sensor DDSU666-H - Communication

Interface: RS485
Baud rate: 9,600 bps
Communication protocol: Modbus-RTU

Huawei Smart Power Sensor DDSU666-H - Measuring range

Phase voltage: 176 Vac ~ 288 Vac
Current: 0 ~ 100 A
