Smart Dongle 4G - Huawei

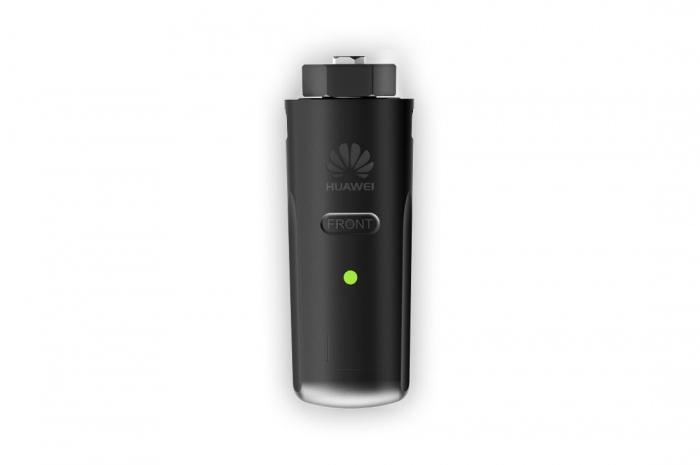

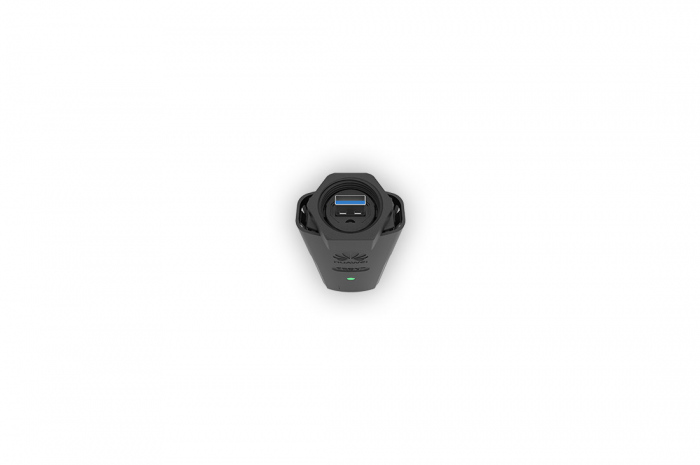

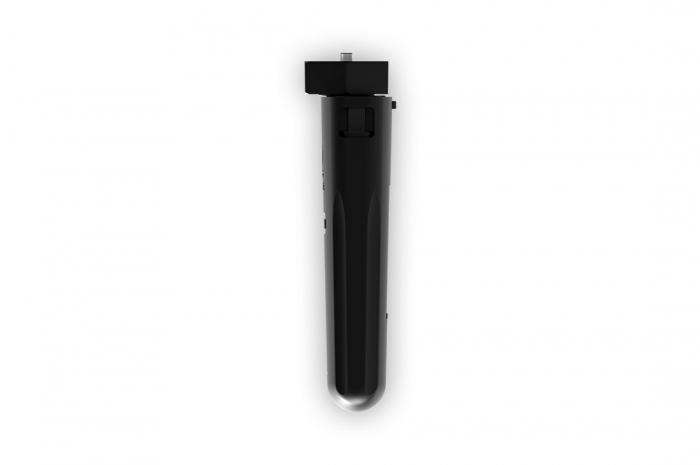

Plug in, connect, done - the Huawei Smart DongleA-03 4G is installed very quickly via Plug&Play. The connection is made via USB, which is also a particularly simple solution. The dongle enables the connection of the inverter to the Huawei FusionSolar Smart PV Management System. In total, the Huawei dongle supports the connection of a maximum of 10 devices. Supported standards include 2G, 3G, and 4G, so communication is possible wirelessly almost anywhere - Huawei recommends using it whenever reception is stable. In terms of operation, there are otherwise hardly any restrictions. The dongle operates in the temperature range of -30 °C to +65 °C and tolerates relative humidities of 5% to 95%. The dongle is protected according to protection class IP65 and has a power consumption of 3.5 watts.

Once correctly connected, the module provides direct feedback to the operator via LED indicator - this is useful not only during commissioning. The compact design of the Huawei Smart DongleA-03 4G should be mentioned; including the housing, the device measures only 130 x 48 x 33 mm with a weight of 90 g. Compatibility with the inverter is essential for smooth operation. The Huawei Smart DongleA-03 4G presents itself here with a long list of supported models from the SUN2000 series. Installation and operation succeed without effort, yet the smart technology offers a high added value.

• Max. 10 supported devices
• Connection interface USB
• Plug-and-play installation
• Display LED - Indicator

Huawei Smart DongleA-03 4G - General Specifications

Max. supported devices: 10
Connection interface: USB
Installation: Plug-and-play
Display: LED - indicator
Dimensions (W x H x D): 130 x 48 x 33 mm
Weight: 90 g
Protection class: IP65
Power consumption (typical): 3.5 W

Huawei Smart DongleA-03 4G - WLAN Parameters

SIM card type: Mini-Sim (15 mm x 25 mm)
Supported standards and frequencies3:
4G: FDD-LTE / TDD-LTE
3G: WCDMA / HSDPA / HSUPA / HSPA+
2G: GSM / GPRS / EDGE

Huawei Smart DongleA-03 4G - Environment

Operating temperature range: -30 to +65
Relative humidity in operation: 5 - 95% RH
Storage temperature range: -40 to +70
Max. Operating altitude: 4000 m

Huawei Smart DongleA-03 4G - Standards Compliance

Certificate: CE

Huawei Smart DongleA-03 4G - Inverter Compatibility

Inverter model:
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1
SUN2000-3/4/5/6/8/10KTL-M0
Sun2000-12/15/17/20KTL-M0
SUN2000-60KTL-M0
SUN2000-100KTL-M1

Huawei Smart DongleA-03 4G - Notes and explanations
