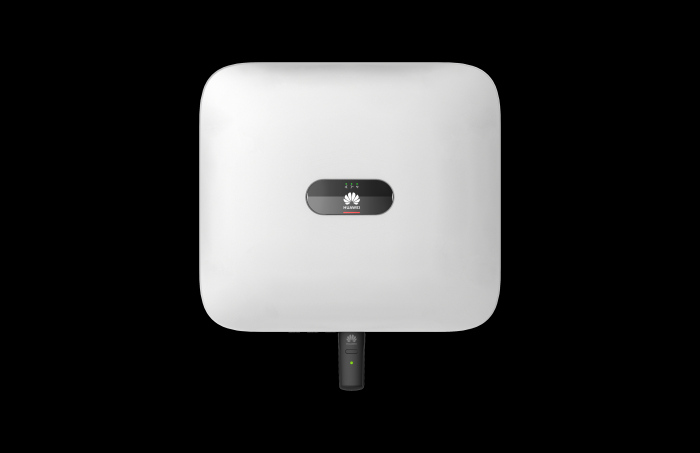

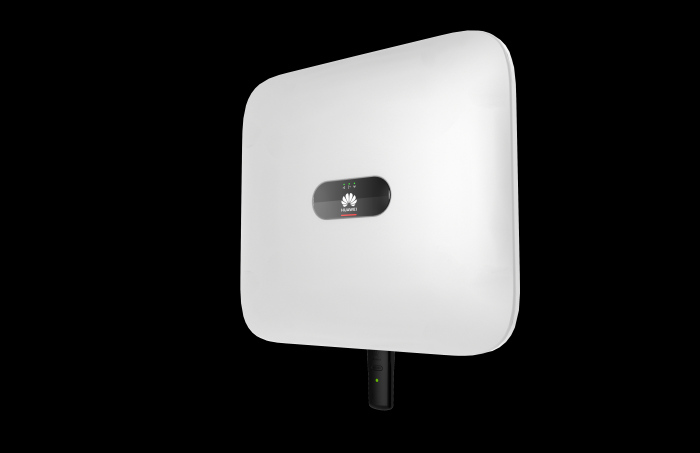

Invertor Huawei 6KW - Trifazat - hibrid wlan integrat

• 3-phase WR with 6.600VA power output
• 2 independent MPP trackers
• 1 battery connection (Plug & Play) for LUNA2000 ESS 5-15kWh
• Efficiency up to 98.6%
• Compatible with module optimizer SUN2000-450W-P
• Communication via WLAN / Ethernet & 4G/LTE*
• Free system monitoring with FusionSolar
• RS485 for Smart Power Sensor & LUNA2000 ESS 5-15kWh
• Integrated AC and DC overvoltage protection TYPE II
• Integrated PID recovery

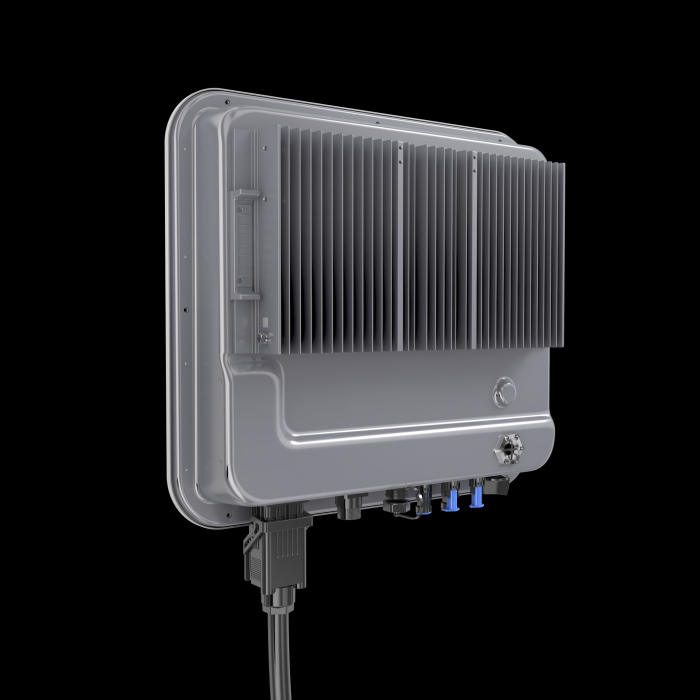

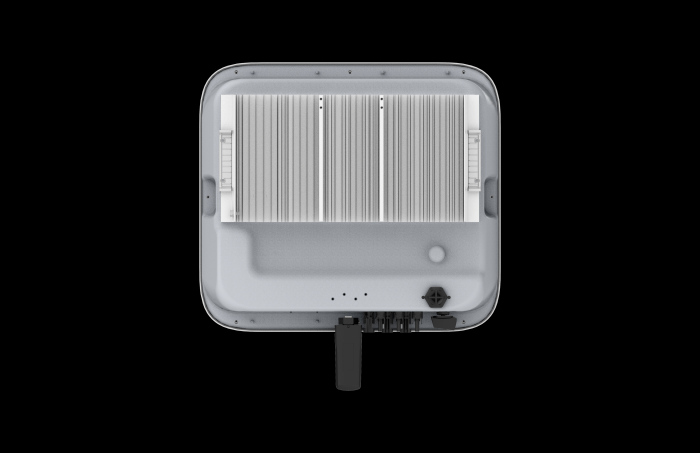

• Convection cooling
• Protection class IP65

Huawei SUN2000-6KTL-M1 - General Specifications
Operating Temperature Range: -25~+60°C
Operating Relative Humidity: 0%RH~100%RH
Operating Altitude: 0~4000m (Derating >2000m)
Cooling: Convection Cooling
Display: LED Display
Communication: RS485, WiFi, Ethernet via Smart Dongle WiFi FE; 4G/3G/2G via Smart Dongle 4G (optional)
Weight (including mounting bracket): 17 kg
Dimensions (including mounting bracket): 525 x 470 x 146.5 mm
Protection class: IP65
Energy consumption at night: < 5.5 W (<10 W, when PID recovery function is enabled)

Huawei SUN2000-6KTL-M1 - Input (DC)
Recommended maximum PV power9,000 Wp
Max. Input voltage: 1.100 V
Operating voltage range : 140 V ~ 980 V
Starting voltage : 200 V
Rated input voltage : 600 V
Max. Input current per MPPT: 11 A
Max. Short circuit current: 15 A
Number of MPP trackers: 2
Max. Number of inputs per MPPT: 1

Huawei SUN2000-6KTL-M1 - Input (DC Battery)
Compatible battery: HUAWEI Smart String ESS 5kWh - 30kWh
Operating voltage range: 600 V ~ 980 V
Maximum operating current: 16 A
Maximum charging power: 10,000 W
Maximum discharge power: 6,600 W

Huawei SUN2000-6KTL-M1 - Output (On Grid)
Mains connection: Three-phase
Rated power: 6,000 W
Maximum apparent power: 6,600 VA
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
AC mains frequency: 50 Hz / 60 Hz
Maximum output current: 10.1 A
Adjustable power factor: 0.8 cap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%

Huawei SUN2000-6KTL-M1 - Output (Backup Power via Backup Box-B1)
Maximum apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V
Maximum output current: 15 A
Adjustable power factor: 0.8 cap. ... 0.8 ind.

Huawei SUN2000-6KTL-M1 - Protection and function
DC load break switch: Yes
Islanding detection: Yes
DC reverse polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
Residual current monitoring: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
Arc detection: Yes
Inputs for ripple control receivers: Yes
Integrated PID recovery: Yes
Battery charging from mains possible: Yes

Huawei SUN2000-6KTL-M1 - Module Optimizer
DC MBUS compatible optimizer: SUN2000-450W-P

Huawei SUN2000-6KTL-M1 - Standards Compliance (others available upon request)
Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Mains connection standards: G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA

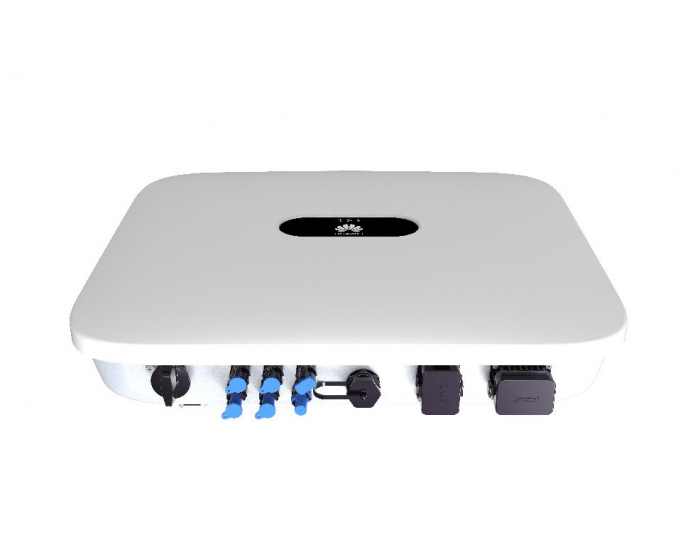

Huawei SUN2000-6KTL-M1 - included in delivery
PV Connectors
Battery connectors

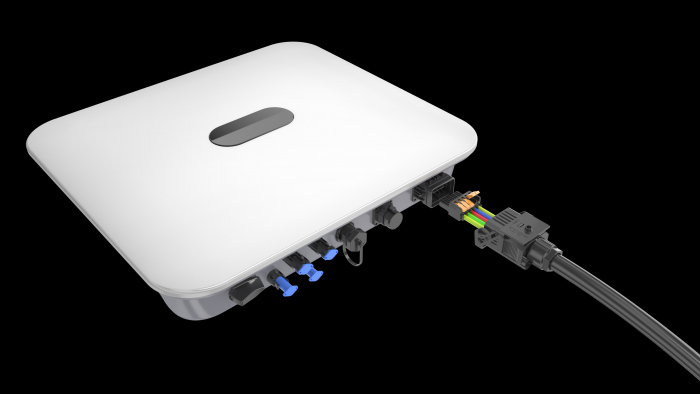

AC connectors
Signal cable connector

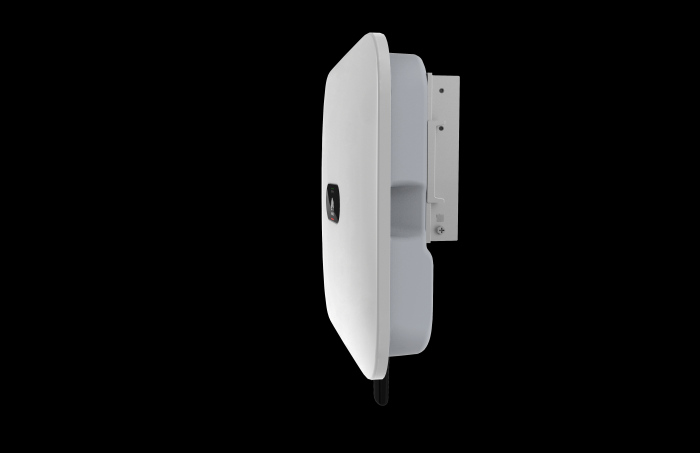

Bracket
WLAN-FE-Dongle
