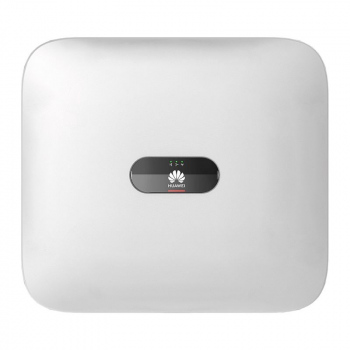

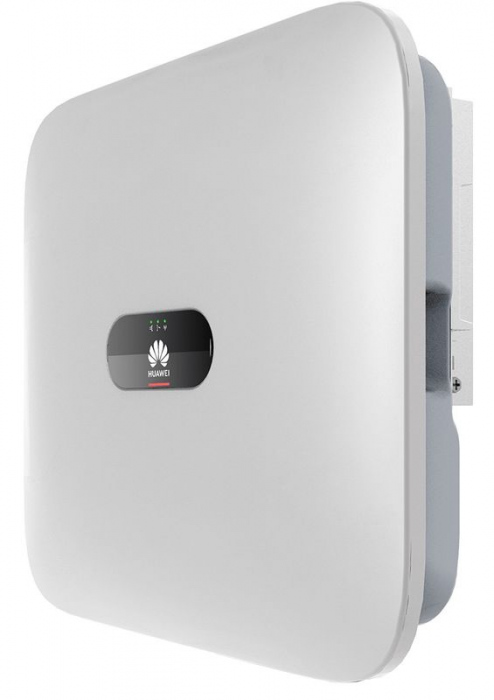

Invertor Huawei 4KW hybrid wlan integrat - Trifazat

• 3-phase inverter with 4,400VA power
• 2 independent MPP trackers
• 1 battery connection (Plug & Play) for LUNA2000 ESS 5-15kWh
• Efficiency up to 98.3%
• Compatible with module optimizer SUN2000-450W-P
• Communication via WLAN / Ethernet & 4G/LTE*
• Free system monitoring with FusionSolar
• RS485 for Smart Power Sensor & LUNA2000 ESS 5-15kWh
• Integrated AC and DC overvoltage protection TYPE II
• Integrated PID recovery
• Convection cooling
• Protection class IP65



Huawei SUN2000-4KTL-M1 General Specifications

Operating Temperature Range: -25~+60°C
Operating Relative Humidity: 0%RH~100%RH
Operating Altitude: 0~4000m (Derating >2000m)
Cooling: Convection Cooling
Display: LED Display
Communication: RS485, WiFi, Ethernet via Smart Dongle WiFi FE; 4G/3G/2G via Smart Dongle 4G (optional)
Weight (including mounting bracket): 17 kg
Dimensions (including mounting bracket): 525 x 470 x 146.5 mm
Protection class: IP65
Energy consumption at night: < 5.5 W (<10 W, when PID recovery function is enabled)



Huawei SUN2000-4KTL-M1 – Input (DC)

Recommended maximum PV power 1 : 6,000 Wp
Max. input voltage 2 : 1,100 V
Operating voltage range 3  : 140 V ~ 980 V Starting
voltage: 200 V
Nominal input voltage: 600 V
Max. input current per MPPT: 11 A
Max. short-circuit current: 15 A
Number of MPP Tracker: 2
Max. number of inputs per MPPT: 1



Huawei SUN2000-4KTL-M1 - Input (DC Battery)

Compatible battery: HUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range: 600V ~ 980V
Maximum operating current: 16A
Maximum charging power:
10,000W Maximum discharging power: 4,400W



Huawei SUN2000-4KTL-M1 – Output (On the grid)

Mains connection: Three-phase
Rated power: 4,000 W
Maximum apparent power: 4,400 VA Rated
output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
AC line frequency: 50 Hz / 60 Hz
Maximum output current: 6.8 A
Adjustable power factor: 0.8 cap. … 0.8 ind.
Total Harmonic Distortion (THD): ≤ 3%



Huawei SUN2000-4KTL-M1 – Output (backup power via Backup Box-B1)

Maximum apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V
Maximum output current: 15 A
Adjustable power factor: 0.8 cap. … 0.8 ind.



Huawei SUN2000-4KTL-M1 – protection and function

DC switch-disconnector: Yes Island grid detection:
Yes DC reverse
polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643- 11
Residual Current Monitoring: Yes
AC Over Current Protection: Yes
AC Short Circuit Protection: Yes
Arc Arc Detection: Yes Ripple Control Receiver
Inputs: Yes
Onboard PID Recovery: Yes
Battery Charging From Mains Possible: Yes



Huawei SUN2000-4KTL-M1 - module optimizer

DC MBUS compatible optimizer: SUN2000-450W-P



Huawei SUN2000-4KTL-M1 - Compliance with standards (others available on request)

Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116 Mains connection standards
: G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA

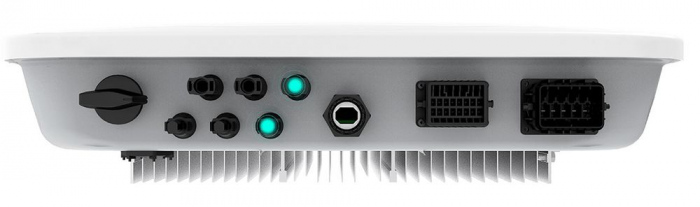

Huawei SUN2000-4KTL-M1 - Included in the box

PV connector
Battery connector
AC connector
Signal cable connector
Bracket WiFi
FE dongle

Huawei SUN2000-4KTL-M1 – Notes and explanations

1 The maximum PV input power of the inverter is 20,000Wp when long strings are designed and fully connected with SUN2000-450-P power optimizers

2 The maximum input voltage is the upper limit of the DC voltage. Any higher DC input voltage would likely damage the inverter.

3 Any DC input voltage above the operating voltage range may cause erroneous operation.
