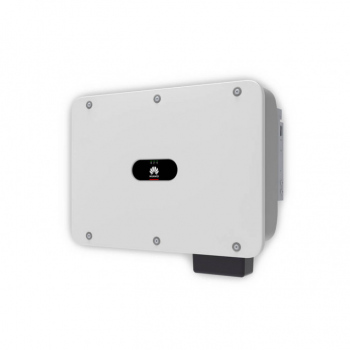

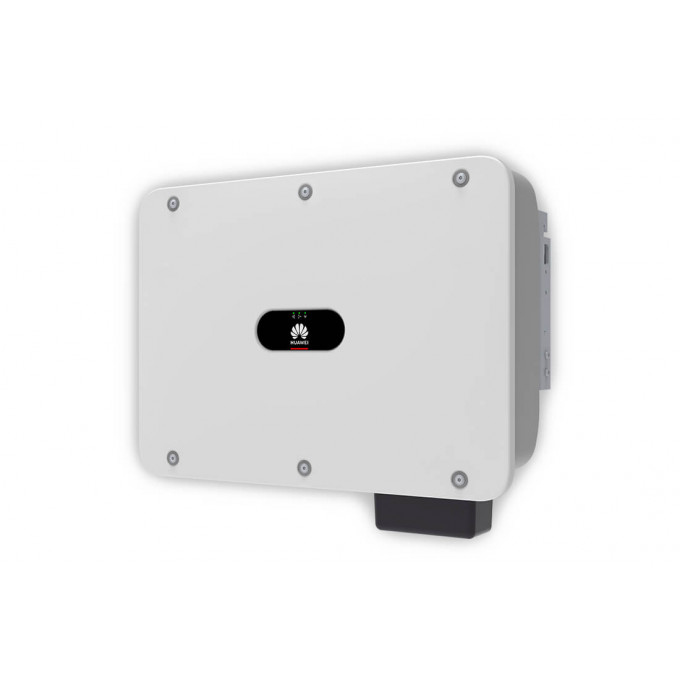

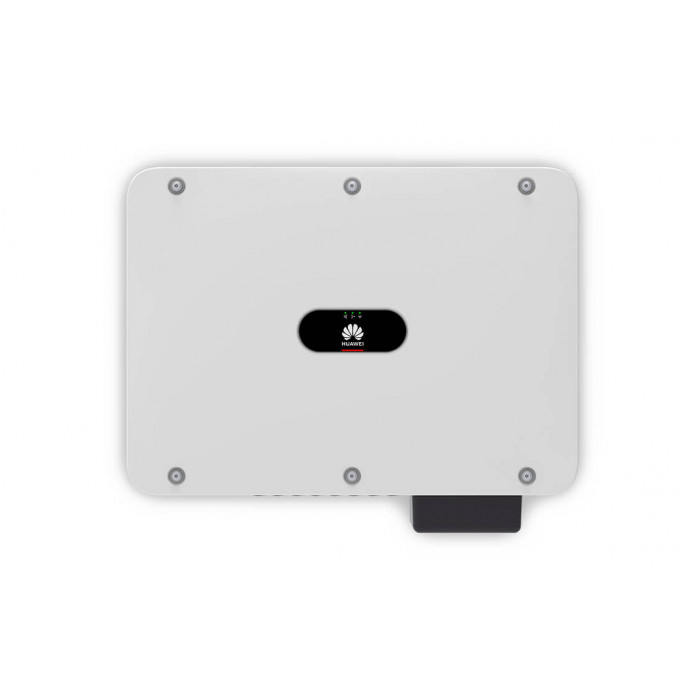

Invertor Huawei 40 kW - On-grid

• 3-phase inverter with 44,000VA power output
• 4 independent MPP trackers

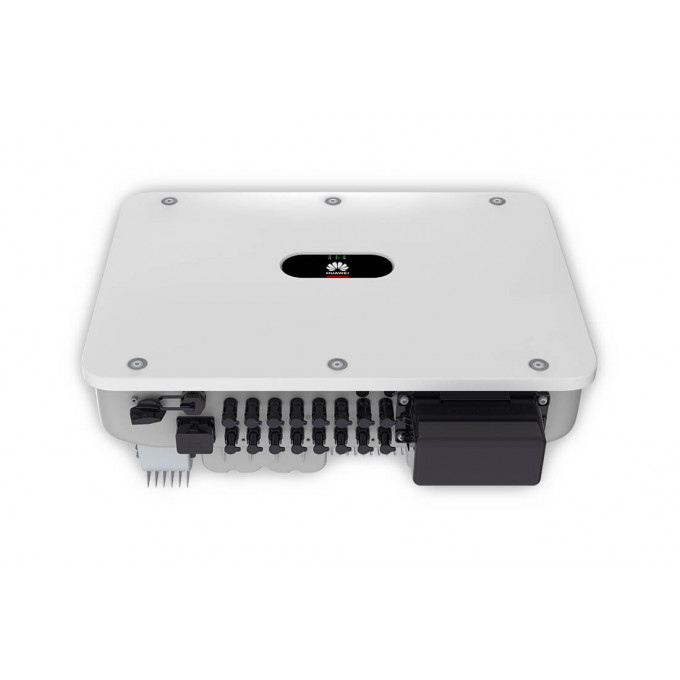

• 8 DC connections
• Efficiency up to 98.7%
• Communication via WLAN / Ethernet & 2G/3G/4G (optional)
• Free system monitoring with FusionSolar
• RS485 for Smart Power Sensor and SmartLogger
• Connection for ripple control receiver
• DC MBUS communication for Smart Optimizer
• Integrated AC and DC overvoltage protection TYPE II
• Integrated PID recovery

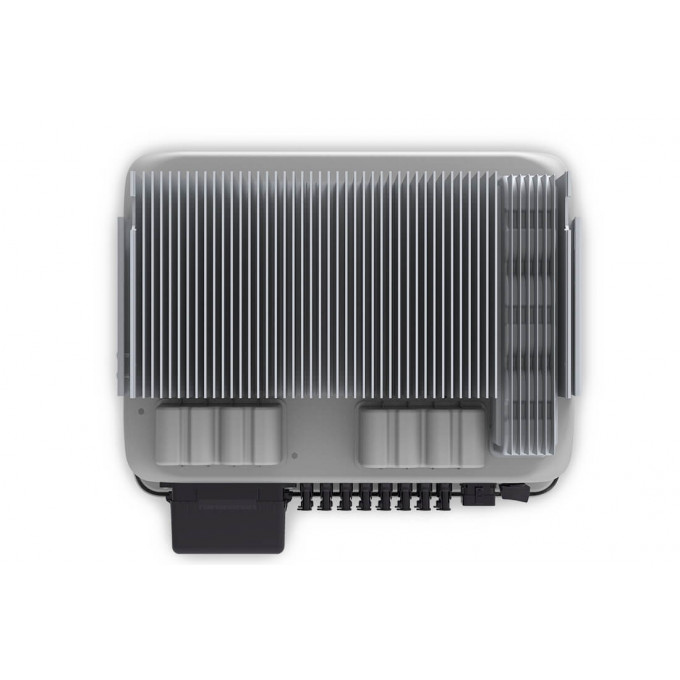

• Convection cooling
• Protection class IP66

Huawei SUN2000-40KTL-M3 - General Specifications

Operating temperature range: -25 ~ +60 °C
Operating relative humidity: 0% RH~100% RH
Operating altitude: max. 4,000 m
Cooling: convection cooling
Weight (with mounting plate): 43 kg
Noise level: < 46 dB
Dimensions: 640 x 530 x 270 mm
DC- Connection: Stäubli MC4
AC connection: Cable lugs on terminal studs M8 Degree of
protection (according to IEC 60529): IP66
Topology: Transformerless
Power consumption at night: ≤ 5.5 W
DC MBUS-compatible optimizer: SUN2000-450W-P

Huawei SUN2000-40KTL-M3 - Input DC

Max. Input voltage: 1,100 V
Max. Current per MPPT : 26 A
Max. Short circuit current per MPPT: 40 A
Starting voltage: 200 V
MPPT operating voltage range 200 V to 1,000 V
Rated input voltage: 600 V
Number of MPP trackers: 4
Max. number of inputs per MPPT: 26 A Number of inputs per MPPT: 2

Huawei SUN2000-40KTL-M3 - Output AC

Rated power: 40000 W
Maximum apparent power: 44000 VA
Rated output voltage: 230 Vac / 400 Vac, 3W/N+PE
AC line frequency: 50 Hz / 60 Hz
Rated output current: 57.8 A
Maximum output current: 63.8 A
Adjustable power factor: 0.8 kap. ... 0.8 ind.
THD: ≤ 3%

Huawei SUN2000-40KTL-M3 - Efficiency

Max. Efficiency: 98.7 %
European efficiency: 98.4 %

Huawei SUN2000-40KTL-M3 - Communication

Display: LED display
RS485: Yes
USB: WLAN/Ethernet via Smart Dongle-WLAN-FE (optional), 4G/3G/2G via Smart Dongle-4G (optional)
Monitoring BUS (MBUS): Yes (isolation transformer required)

Huawei SUN2000-40KTL-M3 - Protection and features

DC load break switch: Yes
Islanding detection: Yes
AC overcurrent protection: Yes
DC reverse polarity protection: Yes
String monitoring: Yes
DC overvoltage arrester: Yes
AC overvoltage protection: Yes
DC insulation resistance detection: Yes
Fault current monitoring: Yes
Arc detection: Yes
Inputs for ripple control receiver PID recovery: Yes

Huawei SUN2000-40KTL-M3 - Safety Standards

EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683

Huawei SUN2000-40KTL-M3 - Mains Connection Standards

IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3,RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution Nr.7, NRS 097-2-1, AS/NZS 4777.2, DEWA
Further information on conformity to standards available on request.

Huawei SUN2000-40KTL-M3 - included in delivery

PV Connector
Bluetooth Dongle
Bracket
