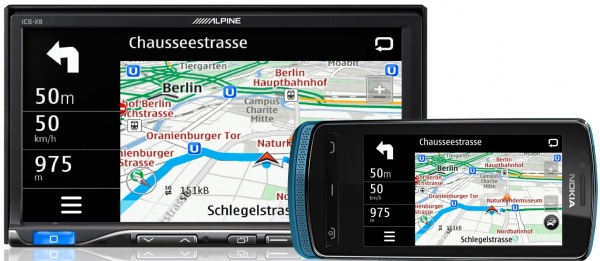

Unitate Multimedia format 2DIN ICS-X8

  • Cod produs: ICS-X8
  • Disponibilitate: Stoc Furnizor
  • Producator: Alpine
  • Garantie: 12 luni
  • 3.299,00 Lei

Doriti sa aflati mai multe informatii despre acest produs? Va stam la dispozitie!
vodafone0723.357.711 orange0754.781.862
cosmote0762.141.111 emailoffice@auto100.ro
0762.141.111
Comanda rapida
Vrei sa comanzi doar acest produs rapid fara sa te inregistrezi?
Producator Alpine

Unitate Multimedia format 2DIN ICS-X8

  Features

Tuner

  • Memory Presets: Preset Stations (FM:18, MW:6, LW:6)
  • Station Name Display
  • Auto Preset Memory
  • Seek Mode: Local / DX

RDS

  • RDS Functions: AF, TA, TP, PTY, News, EON, Radio Text

BLUETOOTH®

  • Built-in BLUETOOTH Module
  • Hands Free Calling: HFP (Hands-Free Profile) with compatible phones
  • Streaming Music: A2DP (Advanced Audio Distribution Profile) with compatible devices
  • Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) ver.1.0, 1.3 and 1.4 compatible
  • SSP (Simple Secure Pairing) supported
  • Advanced BLUETOOTH Technology
  • Phone Book Synchronization
  • Phone Book Search: Percentage Search
  • Short Cut Dialling: 3 Preset Memory
  • Multiple Phone Number Registration: 5 Phone Number Registration Possibility
  • Phone Book Label Display: General, Mobile, Home, Office, Other
  • Auto Answer
  • Call History Display: Dialled Calls, Unanswered Calls, Received Calls, Missed Calls
  • Redial Function
  • Speech Volume Level Adjustment for Outgoing and Incoming Volume
  • GSM Signal Strength Indicator
  • Cell-phone Battery Level Indicator
  • Output Speaker Selection
  • Firmware Updatable
  • Microphone Included

Made for iPod® / iPhone®

  • Music & Video Playback Compatible
  • Connection: USB Cable (KCU-461iV) Required
  • Compatibility for iPod® / iPhone®: Made for iPod touch 4G/3G/2G/1G, iPod nano 6G/5G/4G/3G/2G/1G, iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
  • Search Criteria: Playlists, Artists, Albums, Songs, Podcasts, Genres, Composers and Audiobooks
  • Alphabet Search
  • Percentage Search
  • Direct Up/Down: Playlist, Artist, Album, Podcast, Genre and Composer
  • Repeat
  • M.I.X. (Shuffle) Play: Song, Album, All
  • Artwork Display
  • Cover Flow
  • Battery Charging

Works with Nokia

  • Works with supported Nokia Phones: Mass Storage Mode Connection
  • Micro USB Cable Included
  • Music Playback: MP3, WMA, AAC
  • File/Folder Name Search
  • Tag Info Search
  • Folder Up/Down Control
  • Battery Charging

MirrorLink

  • Controllable Functions: Nokia Drive, Nokia Music
  • Compatible Devices: Nokia 700/701/603 (with Symbian Belle), N8, E6, E7, X7, C6-01, C7
  • Connection: Micro USB Cable Included
  • Battery Charging

Disc Player

  • Disc Type: DVD/CD Player
  • Disc Playback Type: DVD-Video, DVD±R/RW, CD, CD-R/RW
  • Playable Format: MP3, WMA, AAC, DivX
  • Repeat
  • DVD Direct Menu Control
  • M.I.X. Random Play
  • CD Text Display
  • CD Text Name Search
  • Zero data Mute
  • Digital Servo

USB Media Connection

  • USB Connection: USB Cable Included (2pcs)
  • Music & Video Playback Compatible
  • Playable Format: MP3, WMA, AAC, DivX (.avi, .divx)
  • USB Class: Mass Storage Class
  • File/Folder Name Search
  • Tag Info Search
  • Folder Up/Down Control

Sound Tuning

  • Subwoofer Level Adjustment
  • Subwoofer Phase Select: 0°/180°
  • 4-volt Pre Output (Front/Rear/Subwoofer):
  • Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
  • 9-band Parametric Equalizer
  • Source Tone Memory
  • MediaXpander
  • Digital Time Correction
  • Digital Crossover Setting
  • Application Volume Level Setting

General

  • Power Output: 4 x 50 W High Power Amplifier
  • Display: 7 inch WVGA High Resolution Display
  • Motorized Display Operation
  • Control Type: Touch, Drag and Flick
  • Illumination Buttons: 5 Colour (White, Blue, Green, Red, Amber) Selection
  • Display Colour Setting: 4 Colour (Blue, Green, Red, Amber) Selection
  • High Grade Audiophile Design
  • PreOut: 3 PreOuts (4-volt) and 1 A/V AUX Output
  • DAC: 24-Bit DAC
  • AUX-In: 1 A/V AUX Output
  • Steering Wheel Remote Control Ready
  • OEM Sub-display Output
  • Alpine Navigation Input (13-pin connector)
  • Navigation Guidance Mix
  • GPS Antenna Connection (for smartphone connection): GPS Signal Pass-through (KAE-100GPS required)
  • Camera Connection: Alpine Direct Input Compatible
  • Camera Angle Controls: Rear View, Panorama View, Corner View, Ground View
  • Camera Guide Line Adjustment
  • Visual EQ
  • Live Contrast Adjustment
  • Display Tuning Preset Memory
  • User Interface Language: English, French, Spanish, German, Italian, Russian, Dutch, Portguese, Swedish, Finish, Norwegian
  • Calendar/Clock Display
  • Auto Dimmer
  • Favorite Source Setting
  • Anti-theft Security Code
  • Firmware Updatable
  • 2DIN Size
  • Power Antenna Lead
  • Remote Turn-On

SPECIFICATIONS

Screen

  • Screen Size: 7 Inch Wide
  • LCD Type: Transparent Type TN LCD
  • Operation System: TFT Active Matrix
  • Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
  • Effective Number of Picture Elements: 99.99 %
  • Illumination System: White LED Backlighting
  • Colour System: NTSC, PAL

FM Tuner

  • Tuning Range: 87.5 - 108.0 MHz
  • Mono Usable Sensitivity: 8.1 dBf (0.7 uV / 75 O)
  • 50dB Quieting Sensitivity: 12 dBf (1.1 uV / 75 O)
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB

MW Tuner

  • Tuning Range: 531 - 1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

  • Tuning Range: 153 - 281 kHz
  • Usable Sensitivity (IEC Standard): 31.6 µV / 30 dB

Disc Player

  • Frequency Response: 5 Hz - 20 kHz (±1 dB)
  • Channel Separation (at 1kHz): 85 dB
  • Dynamic Range (at 1kHz): 95 dB
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • Wow & Flutter (%WRMS): B.M.L.
  • Signal-to-Noise Ratio: 100 dB
  • Signal System: NTSC, PAL
  • Horizontal Resolution: 500 lines or greater
  • Video Output Level: 1 Vp-p (75 ohms)
  • Video Signal-to-Noise Ratio: 60 dB
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: AAC-LC Format ''.mp4a'' File
  • DivX Decoding: Version 3, 4, 5, 6 (.avi, .divx)

USB

  • USB Requirements: USB 2.0 / 1.1
  • Max. Power Consumption: 1,000 mA
  • USB Class: Play from Device / Mass Storage Class
  • File System: FAT 12/16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: AAC-LC Format ''.mp4a'' File
  • DivX Decoding: Version 3, 4, 5, 6 (.avi, .divx)
  • Number of Channels: 2 Channels (Stereo)
  • Frequency Response: 5 Hz - 20 kHz (±1 dB) *May differ depending on the encoding software and bit rate.
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • Dynamic Range (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation (at 1kHz): 85 dB

GPS

  • GPS Antenna Type: Micro-strip Planar Aerial (requires KAE-100GPS)
  • Reception Frequency: 1,575.42 ±1 MHz
  • Reception Sensitivity: -130 dB Maximum
  • Reception Method: Parallel 12 Channels

BLUETOOTH®

  • BLUETOOTH® Version : Bluetooth V2.1+EDR
  • Output Power: +4 dBm Maximum (Power Class 2)
  • HFP: HFP (Hands-Free Profile)
  • A2DP: A2DP (Advanced Audio Distribution Profile)
  • AVRCP: AVRCP (Audio/Video Remote Control Profile) V1.3
  • OPP: OPP (Object Push Profile)
  • PBAP: PBAP (Phone Book Access Profile)

Sound Tuning

  • Subwoofer Level Adjustment: 0 to 15 step
  • Subwoofer Phase Setting: 0° or 180°
  • High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • High Pass Filter (Gain): -12 to 0 dB
  • Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
  • Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • Low Pass Filter (Gain): -12 to 0 dB
  • Time Correction: 0.0 - 9.9 ms (0.1 ms/step)
  • Parametric Equalizer (Band 1): 20 - 100 Hz
  • Parametric Equalizer (Band 2): 63 - 315 Hz
  • Parametric Equalizer (Band 3): 125 - 500 Hz
  • Parametric Equalizer (Band 4): 250 - 1k Hz
  • Parametric Equalizer (Band 5): 500 - 2k Hz
  • Parametric Equalizer (Band 6): 1k - 4k Hz
  • Parametric Equalizer (Band 7): 2k - 7.2k Hz
  • Parametric Equalizer (Band 8): 5.8k - 12k Hz
  • Parametric Equalizer (Band 9): 9k - 20k Hz
  • Parametric Equalizer (Gain): -7 to +7
  • Application Volume Level Setting: -14 to +14

General

  • Power Requirement: 14.4 (11-16) V.DC
  • Power Consumption: 15 A (Max.)
  • Maximum Power Output: 4 x 50 W
  • Pre Output Voltage (Before Clipping): 4V (Max.) / 10k ohms
  • Aux Audio Output Level: 1.2 V / 10k ohms
  • Operating Temperature (°C): -20° - +60°
  • Maximum Mounting Angle: 30°
  • Weight: 2.6 kg

Dimensions

  • Din Size: 2DIN
  • Chassis Size (W x H x D) mm: 178 x 100 x 159 mm
  • Nose Piece Size (W x H x D) mm: 171 x 95.9 x 29.5 mm






NOTA: Fotografia prezentata are caracter informativ si poate contine accesorii ce nu sunt incluse in pachetul standard al produsului sau pot exista diferente intre aceasta si produsul din magazin. Specificatiile tehnice sunt informative, pot fi schimbate fara instiintare prealabila si nu constituie obligativitate contractuala. Ne straduim sa oferim informatii cat mai exacte. Cu toate acestea este posibil ca unele specificatii sa le fi omis, sa nu ne fie cunoscute sau pot contine erori de operare. Va stam oricand la dispozitie pentru eventuale clarificari.
