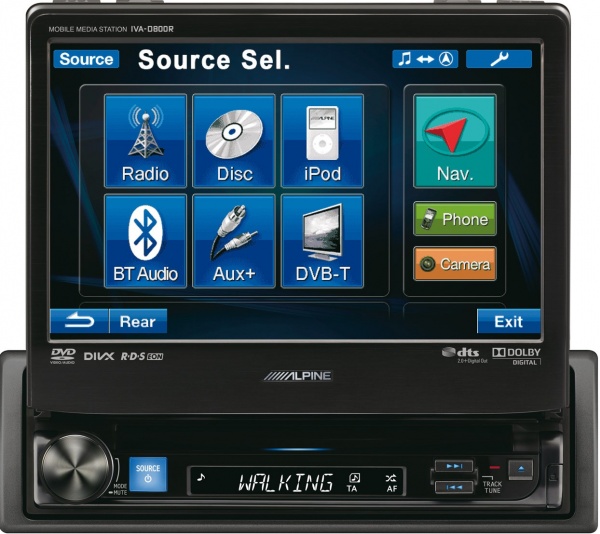

1 DIN MOBILE MEDIA STATION IVA - D800R

  • Cod produs: IVA-D800R
  • Disponibilitate: Stoc Furnizor
  • Producator: Alpine
  • Garantie: 12 luni
  • 3.859,00 Lei

Doriti sa aflati mai multe informatii despre acest produs? Va stam la dispozitie!
vodafone0723.357.711 orange0754.781.862
cosmote0762.141.111 emailoffice@auto100.ro
0762.141.111
Comanda rapida
Vrei sa comanzi doar acest produs rapid fara sa te inregistrezi?
Producator Alpine



1 DIN MOBILE MEDIA STATION IVA - D800R

FEATURES

Tuner

  • Memory Presets: 6 stations/band; FM-1, FM-2, FM-3, MW and LW
  • Memory: Auto Memory
  • Seek Mode: Local/DX Selection/Manual

RDS

  • RDS Functions: TA, TP, PTY, NEWS, RADIO TEXT, EON, AF

Bluetooth®

  • Parrot Bluetooth Ready
  • Alpine KCE-400BT/-250BT Required. Features may differ between phone model and service providers.
  • Hands Free Calling
  • Phone Book Transfer
  • Streaming Music Playback (use with KCE-400BT)
  • Streaming Music Control (use with KCE-400BT)
  • Steering Wheel Remote Control Ready: Call starts and Call finishes (Adapter Required )

Connection for iPod®

  • Made for iPod and iPhone
  • Connection Type: USB Connection
  • Connection: iPod Adapter with Video (requires KCU-451iV)
  • M.I.X. (Shuffle) Capability: Songs, Albums, All
  • Music Control: Song Up / Down for Playlist, Artist, Genre, Composer, Episode
  • Video Playback
  • Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
  • Percentage Search
  • Alphabet Skip Function
  • Information Display: Album Artwork, Song, Title, Album

Disc Player

  • Disc Type: CD / DVD Player
  • Disc Playback Type: Type CD/CD-R/CD-RW/DVD-R/-RW/VR
  • Compressed Media Playback: Divx/MP3/WMA/AAC Playback
  • 24-Bit Burr-Brown DAC
  • Zero data Mute
  • Digital Servo
  • Music Sensor Scan/Repeat
  • Playback Control: Play/Pause/Forward/Backward
  • M.I.X. Mode: One (Folder) /All (Random Play) /Random (CD Only)

USB Media Connection

  • 2.0m USB Cable Included
  • Music Playback: MP3/AAC/WMA Playback
  • Banking: Max. 20 banks (20,000 songs)
  • MTP Ready: Search music by: Album, Artist, Song, Playlist, Genre, Composer, Folder, File and Alphabet Skip

Sound Tuning

  • Audiophile Grade Parts, Components and RCA plugs
  • Copper chassis for maximum shielding
  • Subwoofer Level Adjustment
  • High Pass Filter Adjustment (Front/Rear)
  • MultEQ Ready (PXA-H100 Required)
  • Imprint EQ Ready (PXA-H800 Required)
  • MediaXpander (1, 2, 3, OFF)
  • 6-Channel Digital Time Correction
  • 5 Band Graphic or 7 Band Parametric Equalizer

CD/DVD Changer Control

  • M.I.X.: One/All (Shuffle)
  • Music Text Information: CD: Text Scroll Display, MP3:Text Information Display (ID3 Tag)
  • Music Control: Play/Pause/Forward/Backward
  • Repeat: Song/Disc

General

  • Power Output: 4 x 50W (MOSFET Power IC)
  • Display: 7” WVGA Touch Screen Display
  • Illumination Buttons: Dual Illumination (Blue/Red)
  • 4 On-screen Color Schemes Selectable
  • 3 PreOuts (2V Front/Rear/Subwoofer) with PCOCC Cables and 1 AV Output
  • 1 AV Input
  • Digital Optical Output (Requires KWE-610A)
  • Steering Wheel Remote Control Ready (Adapter Required)
  • DIN Trim Plate
  • Detachable Face Plate
  • Remote Control Ready
  • Navi RGB Connection
  • Rear Camera Inputs: Direct/RCA
  • 4 Visual EQ Modes: OFF/Night Movie/Soft/Sharp/Contrast

SPECIFICATIONS

Max Power Output Ratings

  • Max Power Output: 4 x 50 W

FM Tuner

  • Tuning Range: 87.5-108.0 MHz
  • Mono Usable Sensitivity: 8.1 dBf (0.7μV/75 Ohms)
  • 50dB Quieting Sensitivity: 12 dBf (1.1μV/75 Ohms)
  • Alternate Channel Selectivity: 80.0 dB
  • Signal-to-Noise (S/N) Ratio: 65.0 dB
  • Stereo Separation: 35.0 dB
  • Capture Ratio: 2.0 dB

MW Tuner

  • Tuning Range: 531-1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1/28.0 (μV/dB)

LW Tuner

  • Tuning Range: 153-281kHz
  • Usable Sensitivity (IEC Standard): 31.6/30.0 (μV/dB)

Connection for USB

  • USB Requirements: 1.1/2.0
  • Max. Power Consumption: 500 mA
  • USB Class: Mass Storage
  • File System: FAT 12/16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: ACC-LC format “m4a” files
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5-20 k ±1 dB (Frequency Response may differ depending on the encoder software and bitrate)
  • Total Harmonic Distortion: 0.008% (at 1 kHz)
  • Dynamic Range: 95 dB (at 1 kHz)
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation: 85 dB (at 1 kHz)

Disc Player

  • Frequency Response: 5-20 k ±1 dB
  • Channel Separation (1kHz): 85dB
  • Dynamic Range (1kHz): 95 dB
  • Total Harmonic Distortion (THD): 0.008% (at 1 kHz)
  • Wow & Flutter (%WRMS): B.M.L.
  • Audio Signal-to-Noise (S/N): 105 dB
  • Signal System: NTSC / PAL
  • Horizontal Resolution: 500 lines or greater
  • Video Output Level: 1Vp-p (75 Ohms)
  • Video Signal-to-Noise (S/N): DVD: 60 dB

Sound Tuning

  • Subwoofer Level Adjustment: 0 to 15
  • High Pass Filter: OFF/60/80/100Hz, -12dB/oct (Selectable). Front & Rear individually selectable
  • MediaXpander Modes: CD, MP3, (Level 1, 2, 3, Off), DVD Video (Level 1, 2, Off), DVD Music (Level 1, Off). Requires PXA-H100 or PXA-H800.
  • 6-Channel Time Correction: (L-F/R-F/L-R/R-R/L-SW/R-SW) 0.1 ms steps
  • Equalizer: 5 Band Parametric EQ (63Hz - 17.5KHz, 1/3 oct. Steps), Adjustable level: -6 to +6 dB, Adjustable bandwidth: 1/2/3/4, or 7 Band Graphic EQ Adjustble output level: -6 to +6dB

Remote Control

  • Remote Control Ready
  • Model Number: RUE-4202

Dimensions

  • DIN Size: 1DIN
  • Chassis Size (W x H x D) mm: 178 mm x 50 mm x 165 mm
  • Nose Piece Size (W x H x D) mm: 170 mm x 34.8 mm x 25 mm

General

  • Power Requirement: 14.4 (11-16) V.DC
  • Power Consumption: 2A
  • Operating Temperature (°C): 0°C to +45°C
  • Maximum Mounting Angle: 30° from Horizontal
  • Weight: 2.7 kg






NOTA: Fotografia prezentata are caracter informativ si poate contine accesorii ce nu sunt incluse in pachetul standard al produsului sau pot exista diferente intre aceasta si produsul din magazin. Specificatiile tehnice sunt informative, pot fi schimbate fara instiintare prealabila si nu constituie obligativitate contractuala. Ne straduim sa oferim informatii cat mai exacte. Cu toate acestea este posibil ca unele specificatii sa le fi omis, sa nu ne fie cunoscute sau pot contine erori de operare. Va stam oricand la dispozitie pentru eventuale clarificari.
