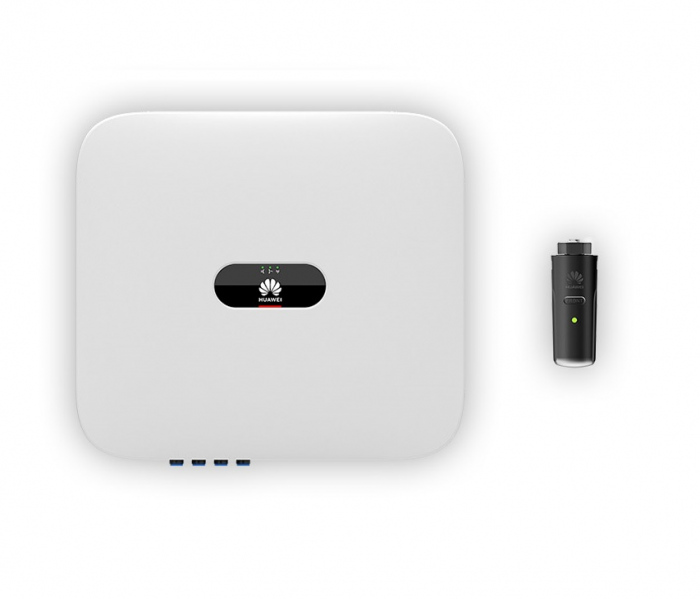

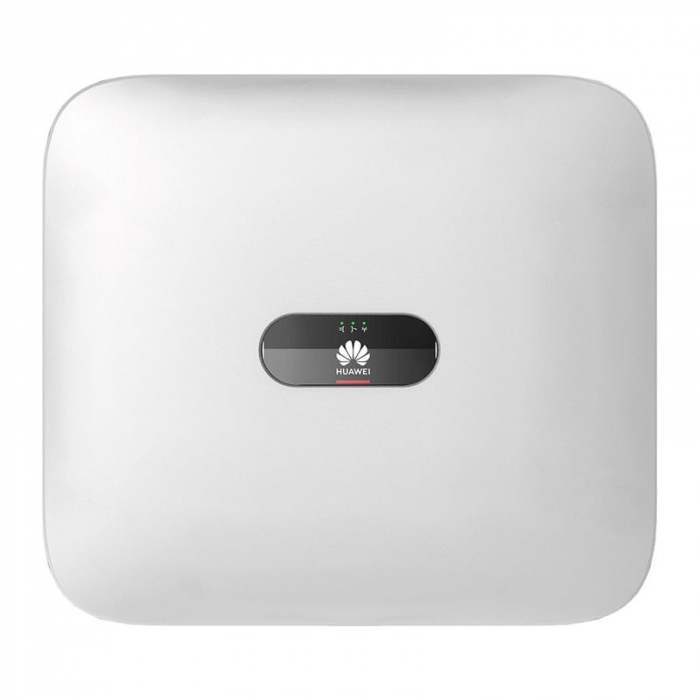

Invertor Huawei 8KW - Trifazat - hibrid wlan integrat

• 3-phase inverter with 8.800VA power
• 2 independent MPP trackers
• 1 battery connection (Plug & Play) for LUNA2000 ESS 5-15kWh
• Efficiency up to 98.6%
• Compatible with module optimizer SUN2000-450W-P
• Communication via WLAN / Ethernet & 4G/LTE*
• Free system monitoring with FusionSolar
• RS485 for Smart Power Sensor & LUNA2000 ESS 5-15kWh
• Integrated AC and DC overvoltage protection TYPE II
• Integrated PID recovery
• Convection cooling
• Protection class IP65

Huawei SUN2000-8KTL-M1 - General Specifications

Betriebstemperaturbereich: -25 ~ +60 °C
Relative Betriebsfeuchtigkeit: 0 % RH~100 % RH
Betriebshohe: 0 – 4.000 m (Derating > 2.000 m)
Kühlung: Konvektionskühlung
Anzeige: LED – Anzeige
Kommunikation: RS485, WLAN, Ethernet über Smart Dongle-WLAN-FE; 4G/3G/2G über Smart Dongle 4G (optional)
Gewicht (inkl. Befestigungswinkel): 17 Kg
Abmessungen (inkl. Befestigungswinkel): 525 x 470 x 146.5 mm
Schutzart: IP65
Energieverbrauch nachts: < 5,5 W (<10 W, wenn die PID-Wiederherstellungsfunktion aktiviert ist)

Huawei SUN2000-8KTL-M1 - Input (DC)

Recommended maximum PV power1: 12,000 Wp
Max. Input voltage2: 1,100 V
Operating voltage range3 : 140 V ~ 980 V
Starting voltage: 200 V
Rated input voltage: 600 V
Max. input current per MPPT: 11 A Max. input current per MPPT: 1,100 V Input current per MPPT: 11 A
Max. short-circuit current: 15 A Short circuit current: 15 A
Number of MPP trackers: 2
Max. number of inputs per MPPT: 140 V ~ 80 V Number of inputs per MPPT: 1

Huawei SUN2000-8KTL-M1 - Input (DC Battery)

Compatible battery: HUAWEI Smart String ESS 5kWh - 30kWh
Operating voltage range: 600 V ~ 980 V
Maximum operating current: 16 A
Maximum charging power: 10,000 W
Maximum discharging power: 8,800 W

Huawei SUN2000-8KTL-M1 - Output (On Grid)

Mains connection: three-phase
Rated power: 8,000 W
Maximum apparent power: 8,800 VA
Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
AC mains frequency: 50 Hz / 60 Hz
Maximum output current: 13.5 A
Adjustable power factor: 0.8 cap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%

Huawei SUN2000-8KTL-M1 - Output (Backup Power via Backup Box-B1)

Maximum apparent power: 3,300 VA
Rated output voltage: 220 V / 230 V
Maximum output current: 15 A
Adjustable power factor: 0.8 kap. ... 0.8 ind.

Huawei SUN2000-8KTL-M1 - Protection and function

DC load break switch: Yes
Islanding detection: Yes
DC reverse polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
AC overvoltage protection: Yes, compatible with protection type TYPE II according to EN / IEC 61643-11
Fault current monitoring: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
Arc detection: Yes
Inputs for ripple control receivers: Yes
Integrated PID recovery: Yes
Battery charging from mains possible: Yes

Huawei SUN2000-8KTL-M1 - Module Optimizer

DC MBUS compatible optimizer: SUN2000-450W-P

Huawei SUN2000-8KTL-M1 - Standards Compliance (others available upon request)

Safety standards: EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Mains connection standards: G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA

Huawei SUN2000-8KTL-M1 - included in delivery

PV Connector
Battery Connector
AC Connector
Signal Cable Connector
Bracket
WLAN-FE-Dongle

Huawei SUN2000-8KTL-M1 - Notes and explanations

1 The maximum PV input power of the inverter is 20,000Wp when long strings are designed and fully connected to the SUN2000-450-P power optimizers.

2 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would likely damage the inverter.

3 Any DC input voltage above the operating voltage range may cause faulty operation.
